Chapter 4. Storage pools 181
The data is distributed across a single row. For simplification, not all packs are shown in
Figure 4-50.

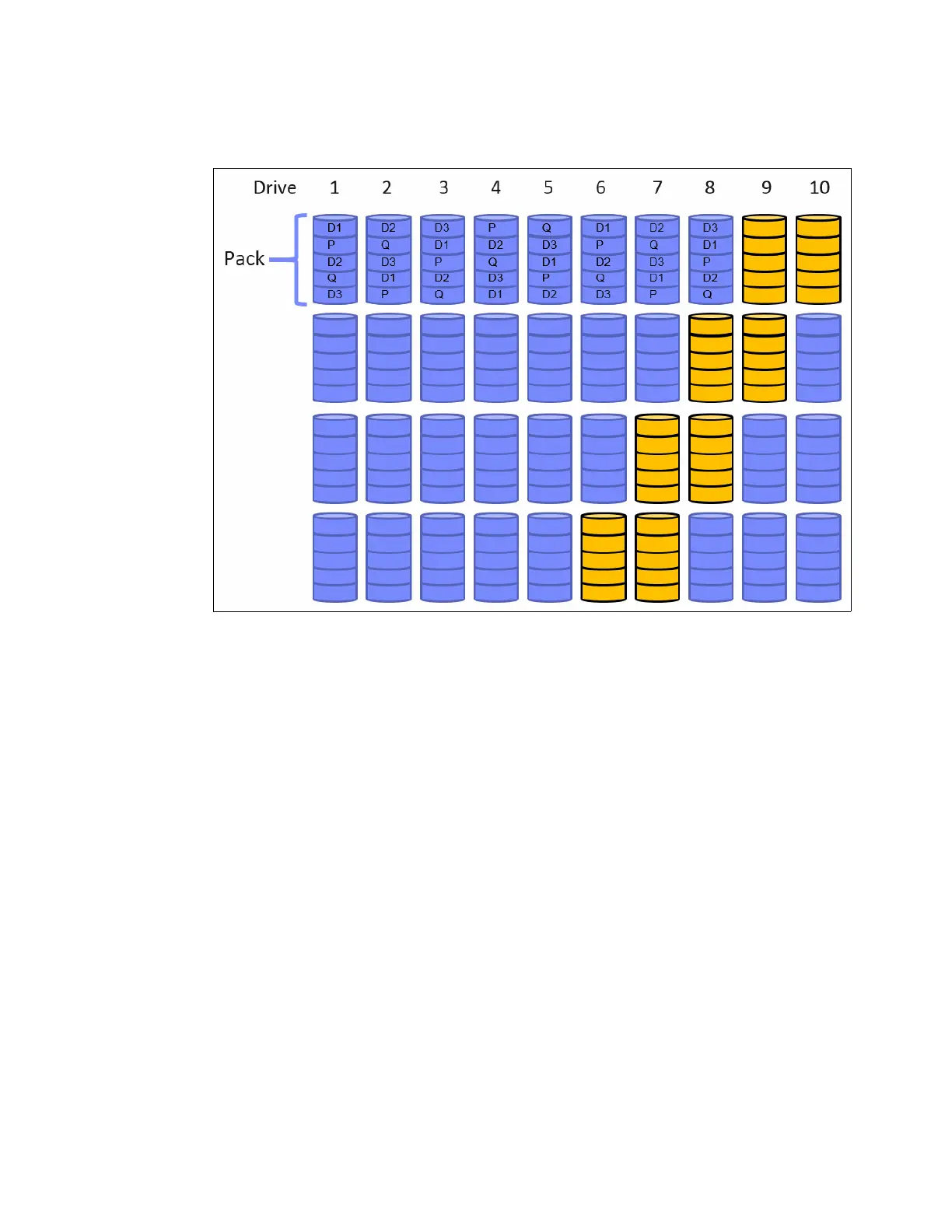

Figure 4-50 Distributed RAID 6
Figure 4-51 on page 182 shows a single drive failure in the distributed RAID 6 (DRAID 6)
environment. Physical disk 3 failed and the RAID 6 algorithm is using the spare capacity for a
single spare drive in each pack for rebuild (which is marked in green). All disk drives are
involved in the rebuild process, which significantly reduces the rebuild time.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
