282 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

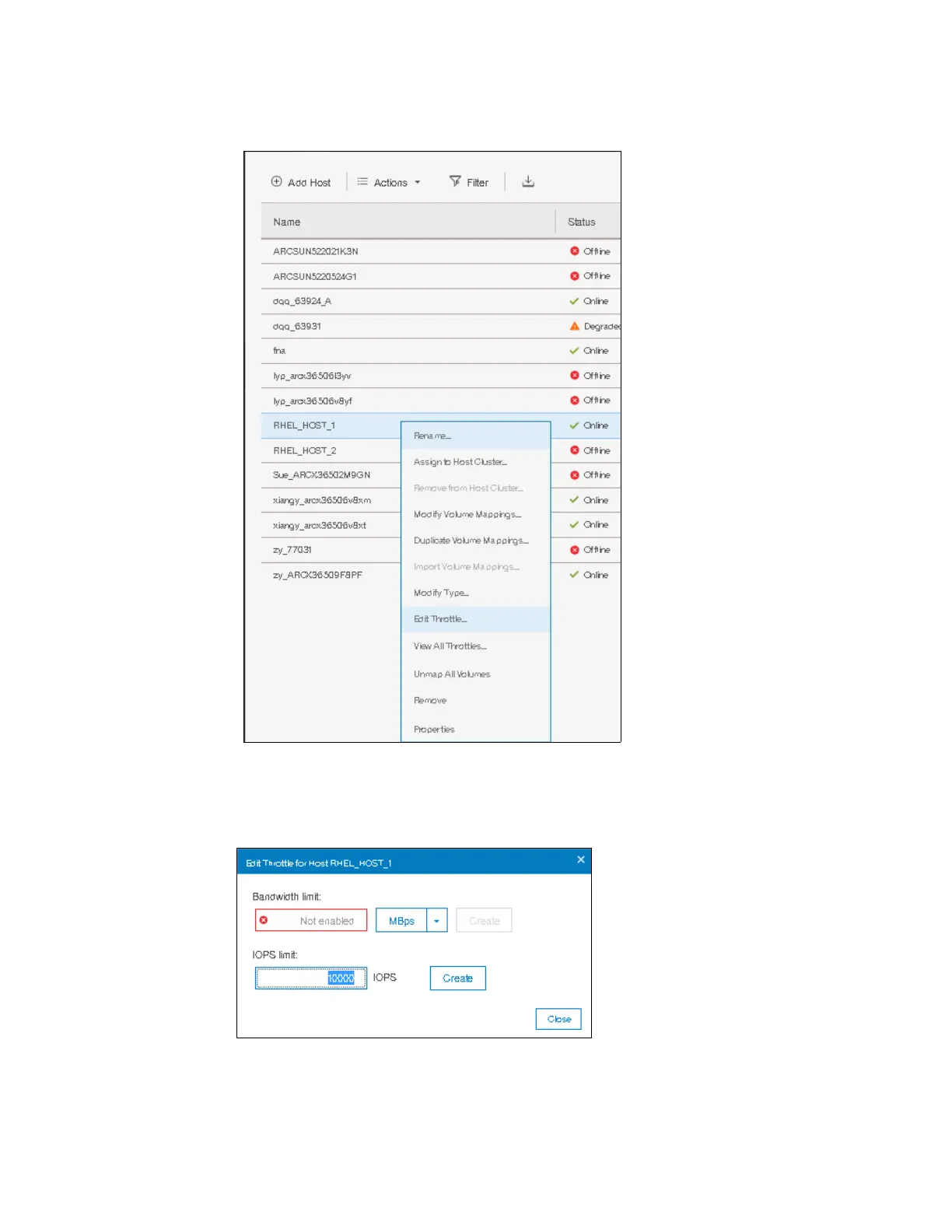

2. Right-click the desired host and select Edit Throttle, as shown in Figure 5-114.

Figure 5-114 Selecting Edit Throttle option

3. Input the desired type of I/O throttle, either IOPS or Bandwidth. In our example, we set up

an IOPS throttle by entering the IOPS limit, as shown in Figure 5-115.

Figure 5-115 Setting IOPS throttle
