284 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

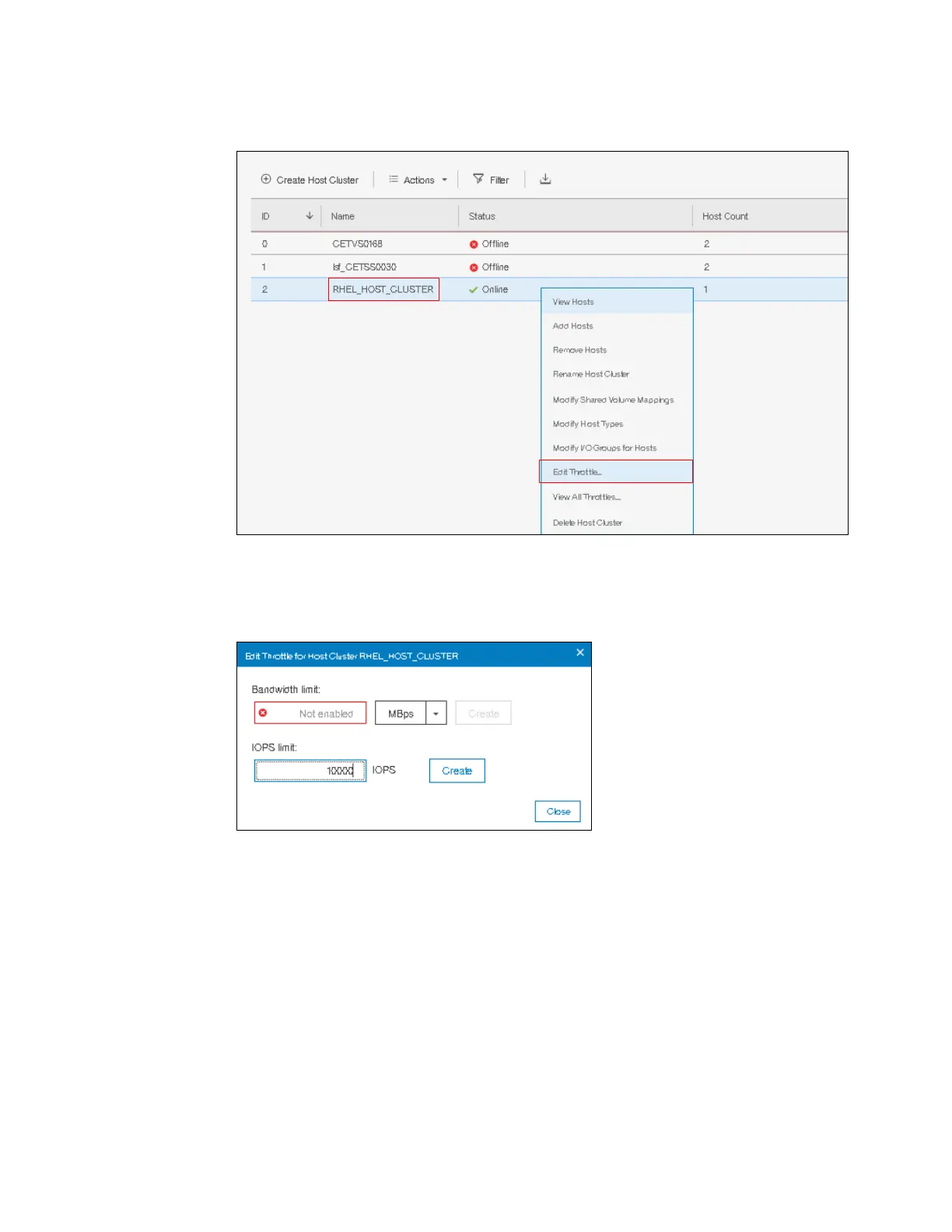

2. Right-click the desired host cluster and select Edit Throttle, as shown in Figure 5-118.

Figure 5-118 Selecting Edit Throttle option

3. Input the desired type of I/O throttle, either IOPS or Bandwidth. In our example, we set up

IOPS throttle by entering the IOPS limit, as shown in Figure 5-119.

Figure 5-119 Setting IOPS throttle
