Chapter 6. Volume configuration 311

3. This action opens a Create Mapping window. In this window, indicate whether the volume

needs to be mapped to a host or host cluster, select the desired host or host cluster, and

whether you want system assigned SCSI ID or self assigned as shown in Figure 6-21.

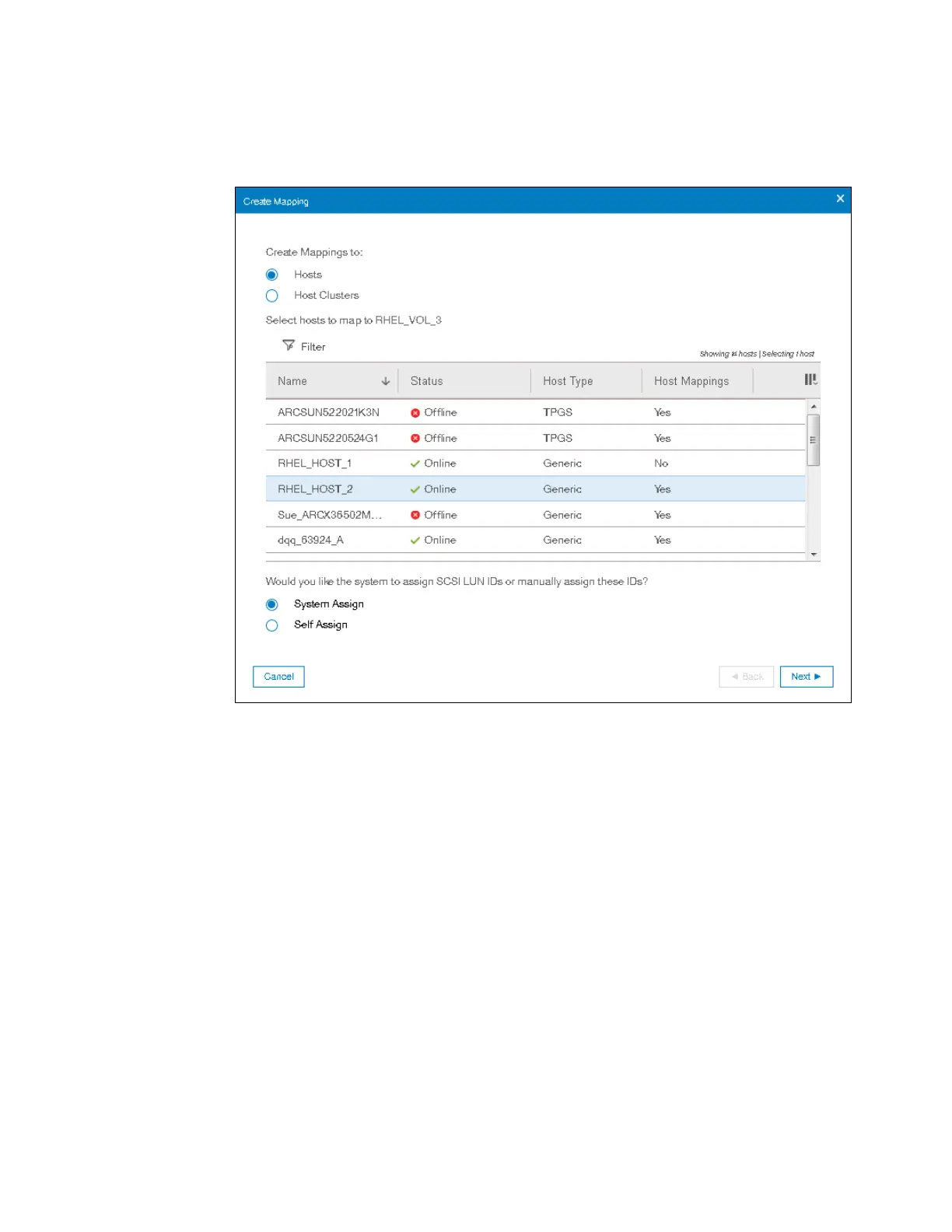

Figure 6-21 Mapping a Volume to Host

Default Chapter5
