340 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

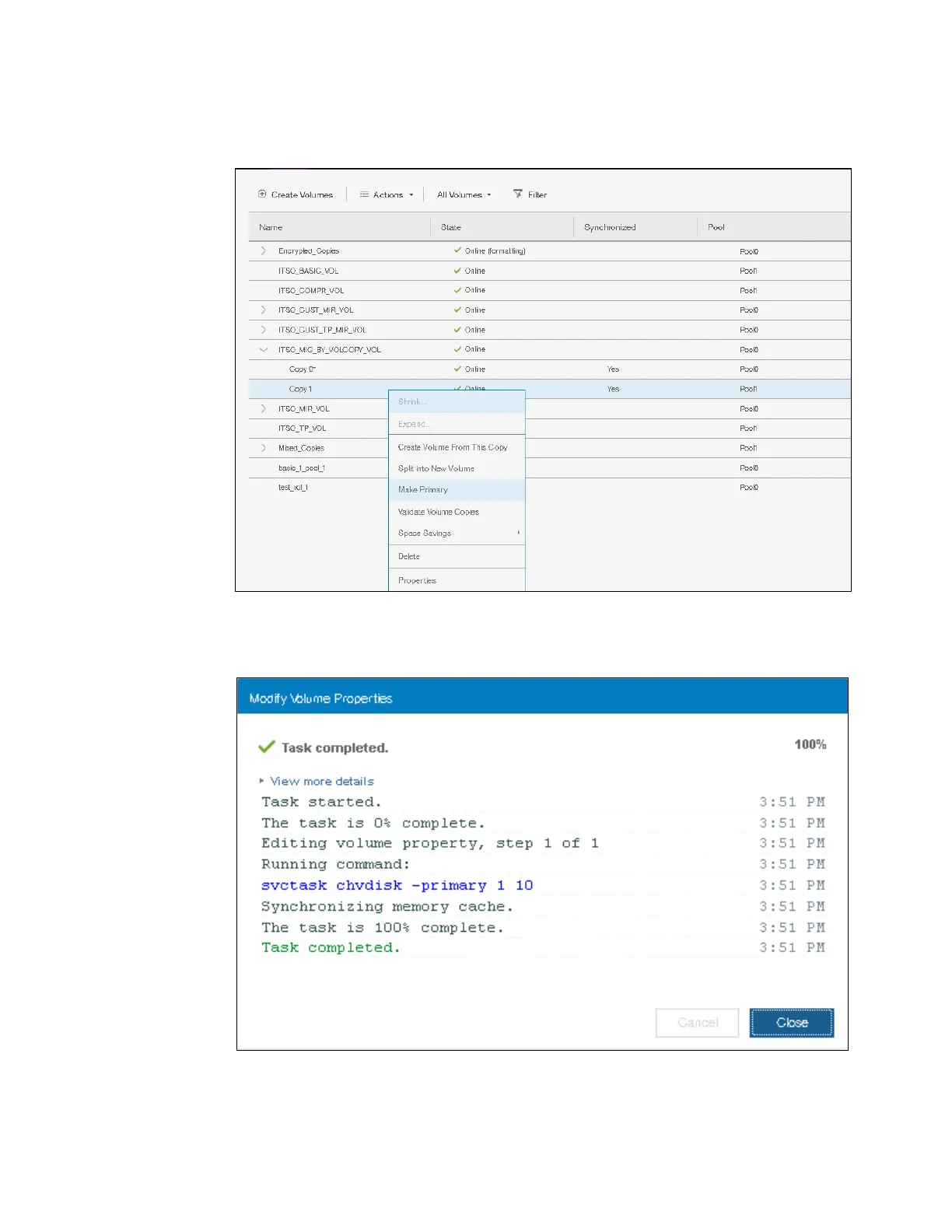

4. Wait until the copies are synchronized. Then, change the role of the copies and make the
new copy of the primary copy, as shown in Figure 6-61.
Figure 6-61 Making the new copy in a different storage pool as primary
5. A task completion window will be shown as in Figure 6-62.
Figure 6-62 Primary copy change task completed

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
