354 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

Ensure that all systems are running a software level that enables them to recognize the other

nodes in the cluster. Also, ensure that the systems use Fibre Channel adapters at the same

speed. To avoid performance bottlenecks, do not use a combination of 8 Gbps and 16 Gbps

links.

Examples of how to connect a Storwize V5000 Gen1 to a Storwize V5030 system are shown

in Figure 7-2 and Figure 7-3.

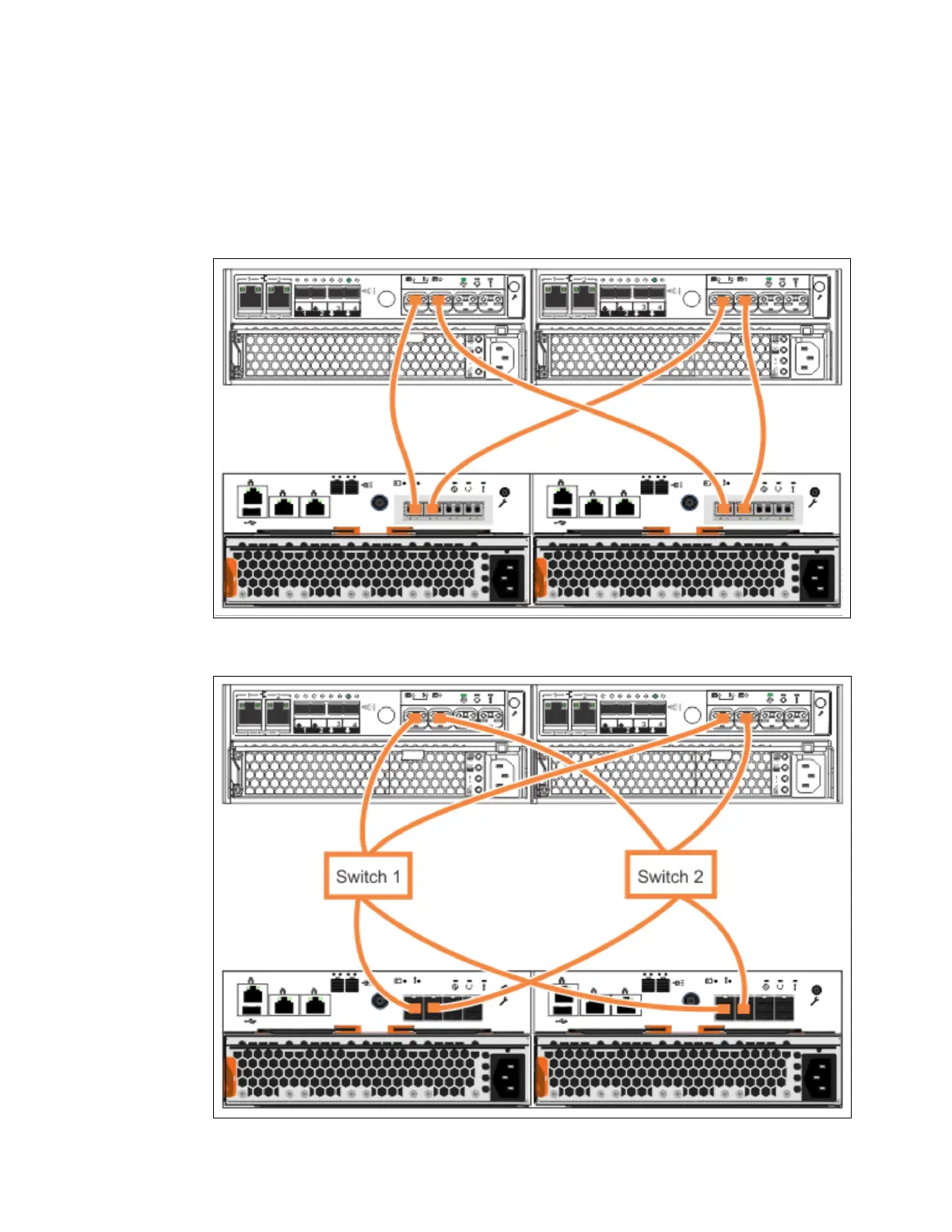

Figure 7-2 Direct Fibre Channel connections between systems

Figure 7-3 Fibre Channel connections using switches between the systems
