IBM Storwize V5030 User Manual

368 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

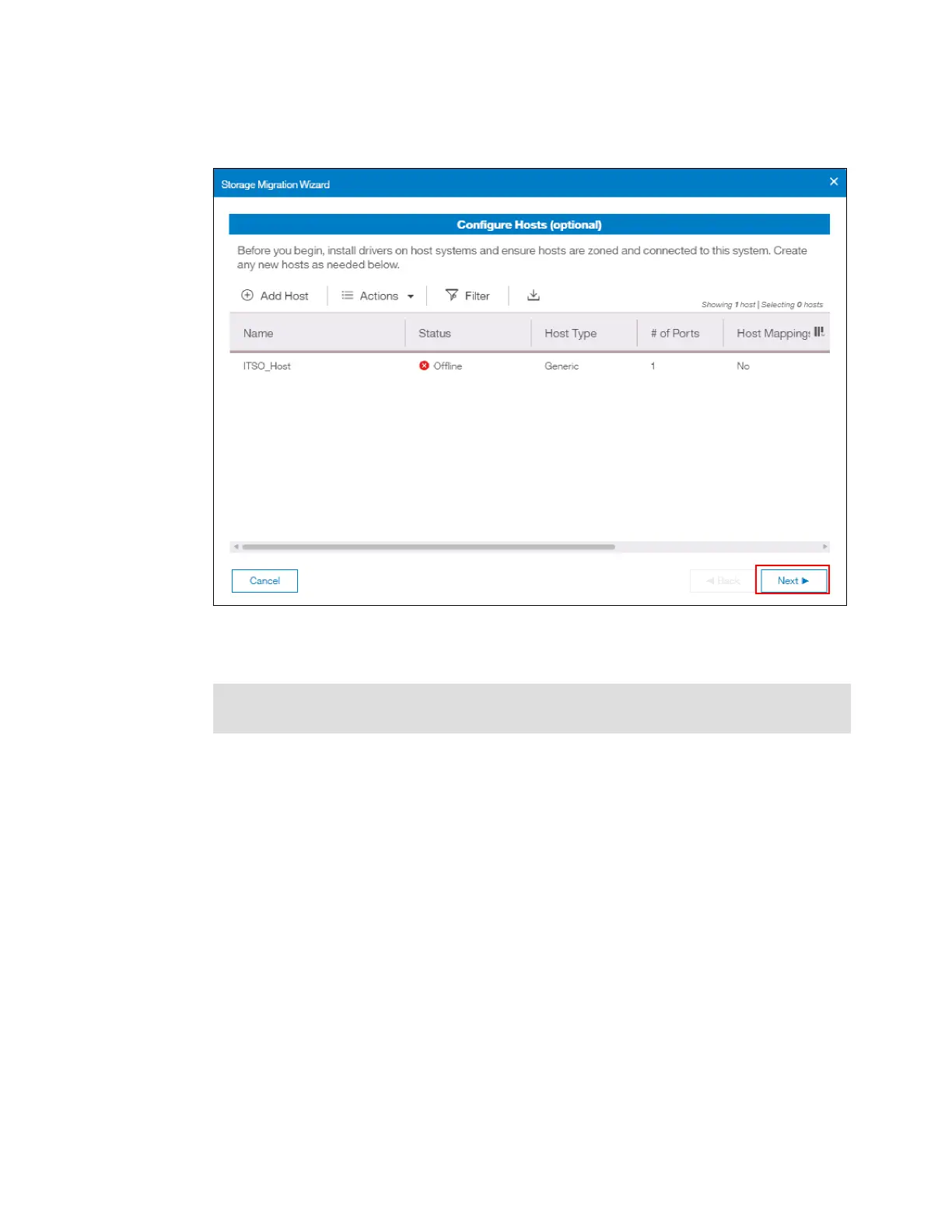

3. The host is listed in the original Configure Hosts (optional) panel, as shown in Figure 7-20.
Click Next to display the Map Volumes to Host (optional) panel.
Figure 7-20 Configure Hosts panel that lists the host
Mapping volumes to hosts
Note: This step is optional. You can bypass it by selecting Next and moving to “Selecting a
storage pool” on page 372.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
