Chapter 7. Storage migration 371

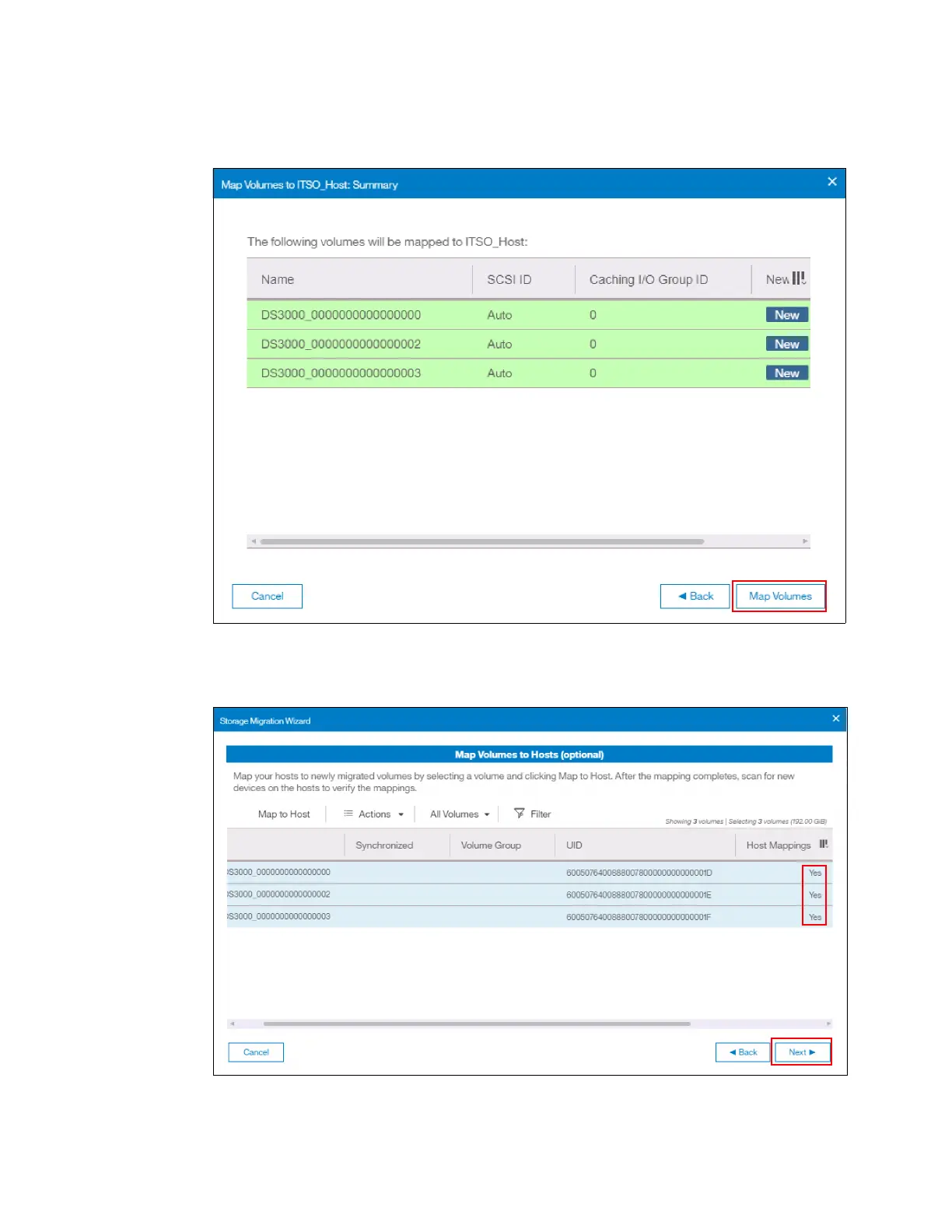

4. A confirmation screen is displayed with the task summary as shown in Figure 7-23. Click

Map Volumes to finish the task and return to the Map Volumes to Hosts (optional) panel.

Figure 7-23 Mapping volumes summary

5. Figure 7-24 shows that the host mappings are in place for the chosen volumes. Click Next.

Figure 7-24 Map Volumes to Hosts panel with completed host mappings
