384 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

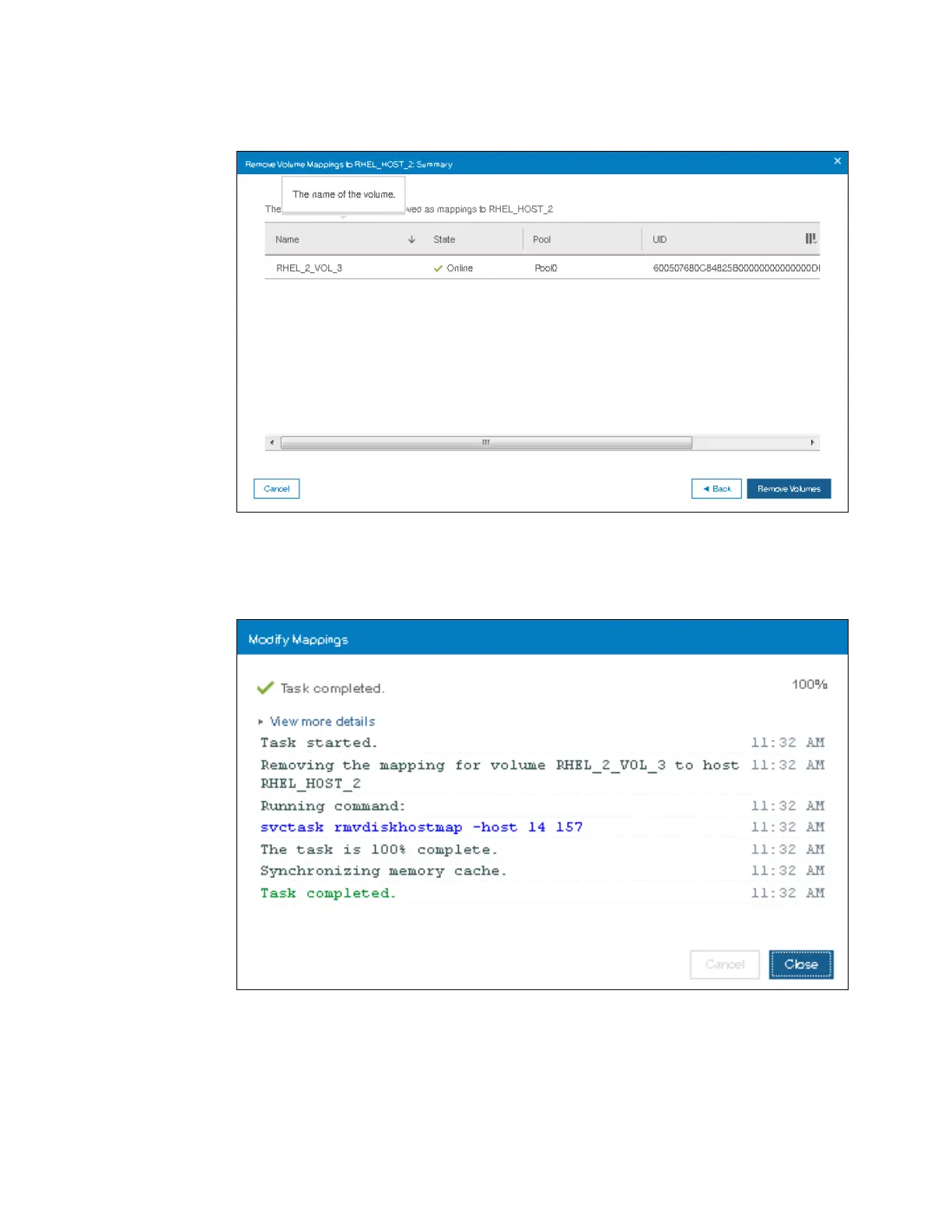

5. A window listing the volume that is to be unmapped displays, as shown in Figure 8-14.

Figure 8-14 Remove volume mapping summary window

6. Click Remove Volumes and a task completion confirmation window opens, as shown in

Figure 8-15.

Figure 8-15 Volume unmap task completion

7. The selected volume is now unmapped.
