Chapter 8. Advanced host and volume administration 403

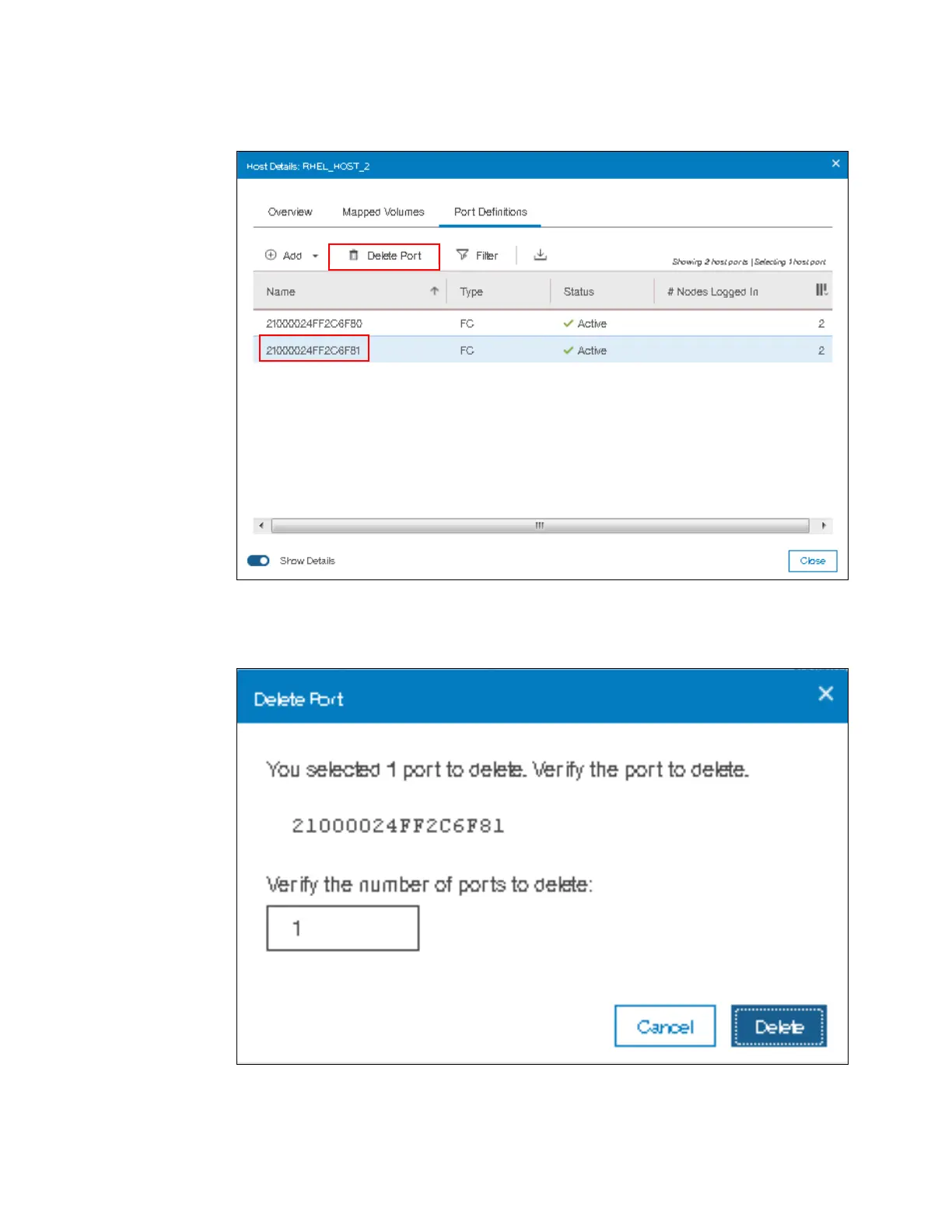

2. Select Delete Port, as shown in Figure 8-38.

Figure 8-38 Delete Port operation

3. Verify the number of ports and the port to be deleted, as shown in Figure 8-39.

Figure 8-39 Delete port
