Chapter 8. Advanced host and volume administration 407

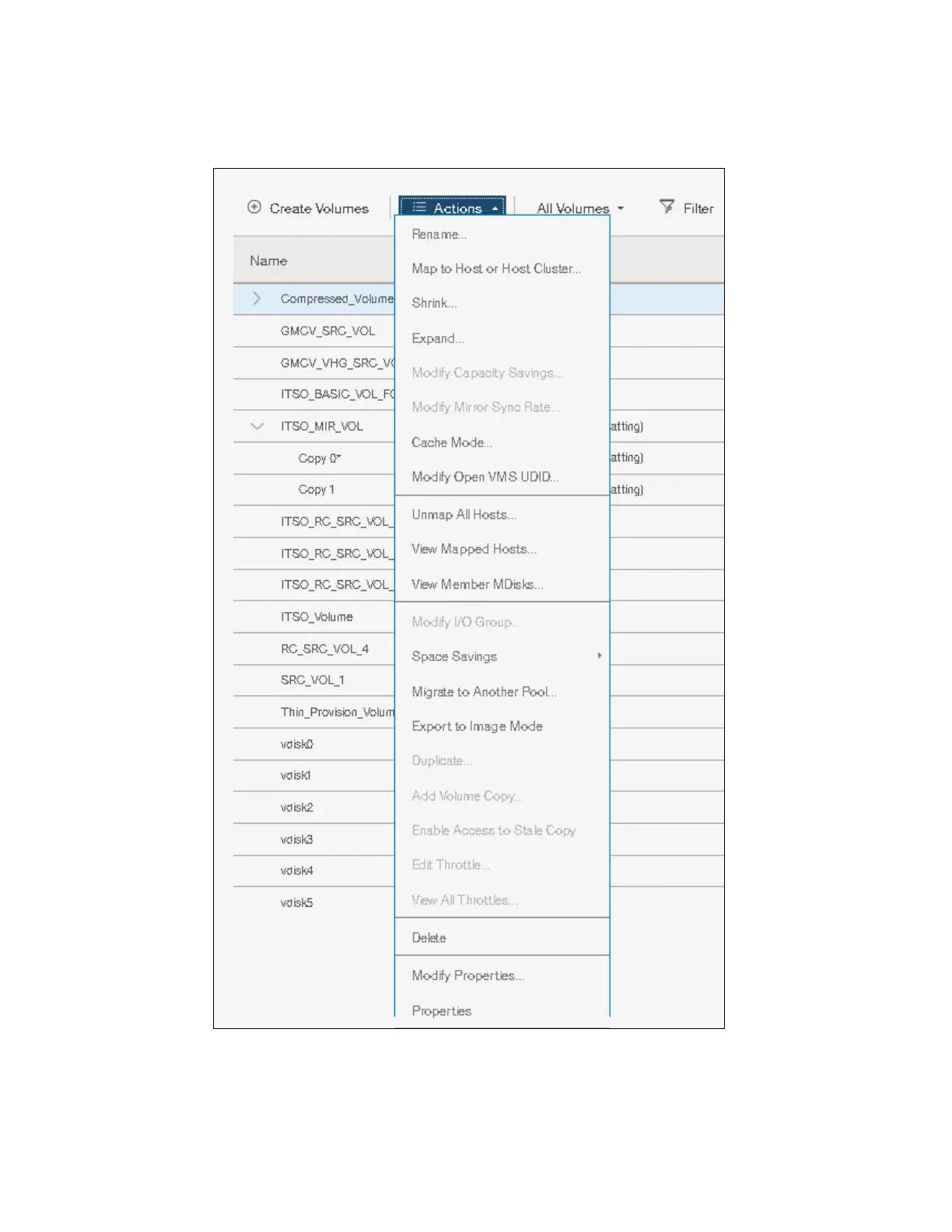

3. Right-clicking or selecting a volume and opening the Actions menu shows the available

actions for a volume, as shown in Figure 8-44.

Figure 8-44 Actions menu for a volume
