424 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
2. To open the advanced view of a volume copy, select the copy of the volume that you want

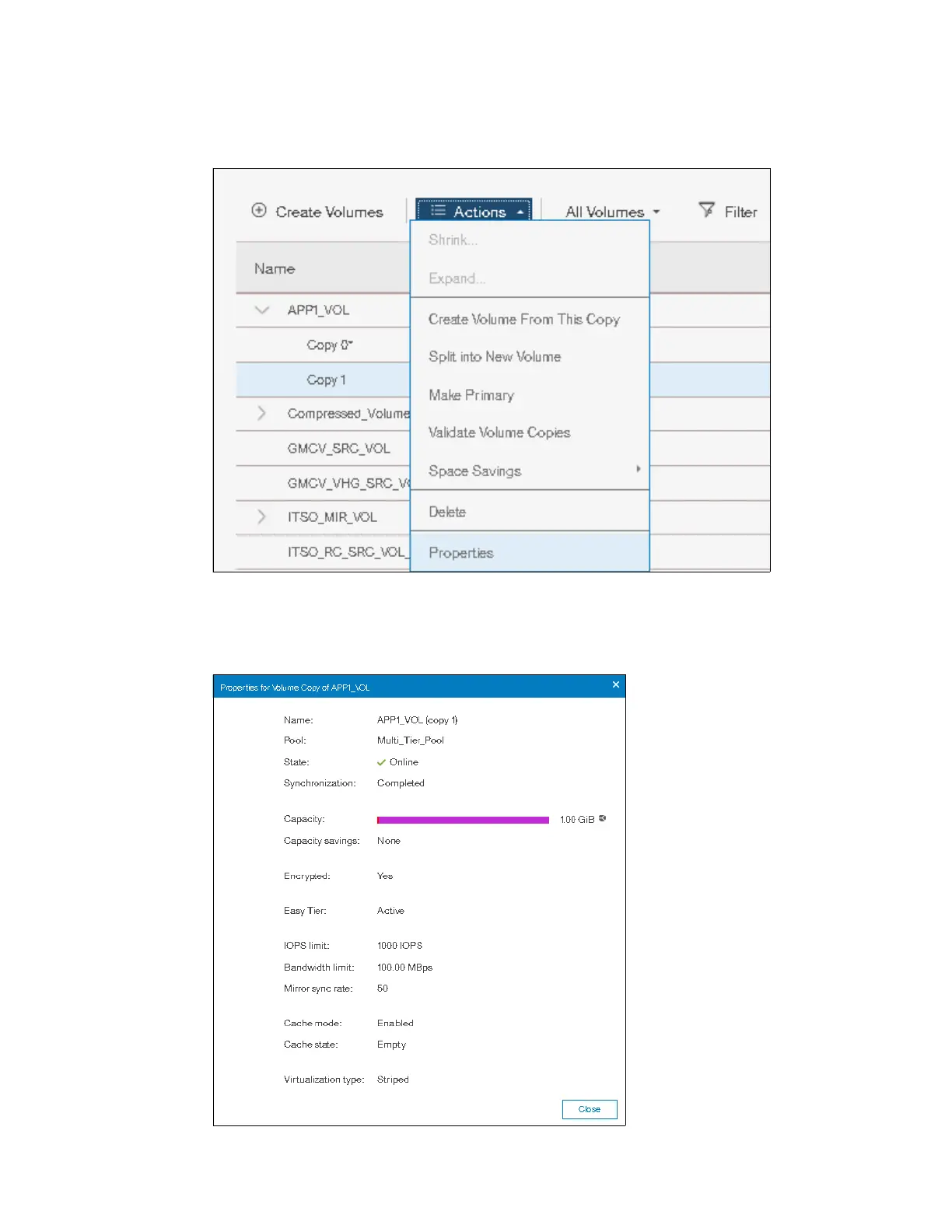

and click Actions → Properties, as shown in Figure 8-60.
Figure 8-60 Volume copy properties
3. The Properties panel opens. Click View more details to show the full list of the volume
copy properties, which is shown in Figure 8-61.
Figure 8-61 Volume copy properties

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
