IBM Storwize V5030 User Manual

Chapter 10. Copy services 603
9. Click Finish. A dialog window will be presented where you can remove a relationship that
was created, click , as shown in Figure 10-107.

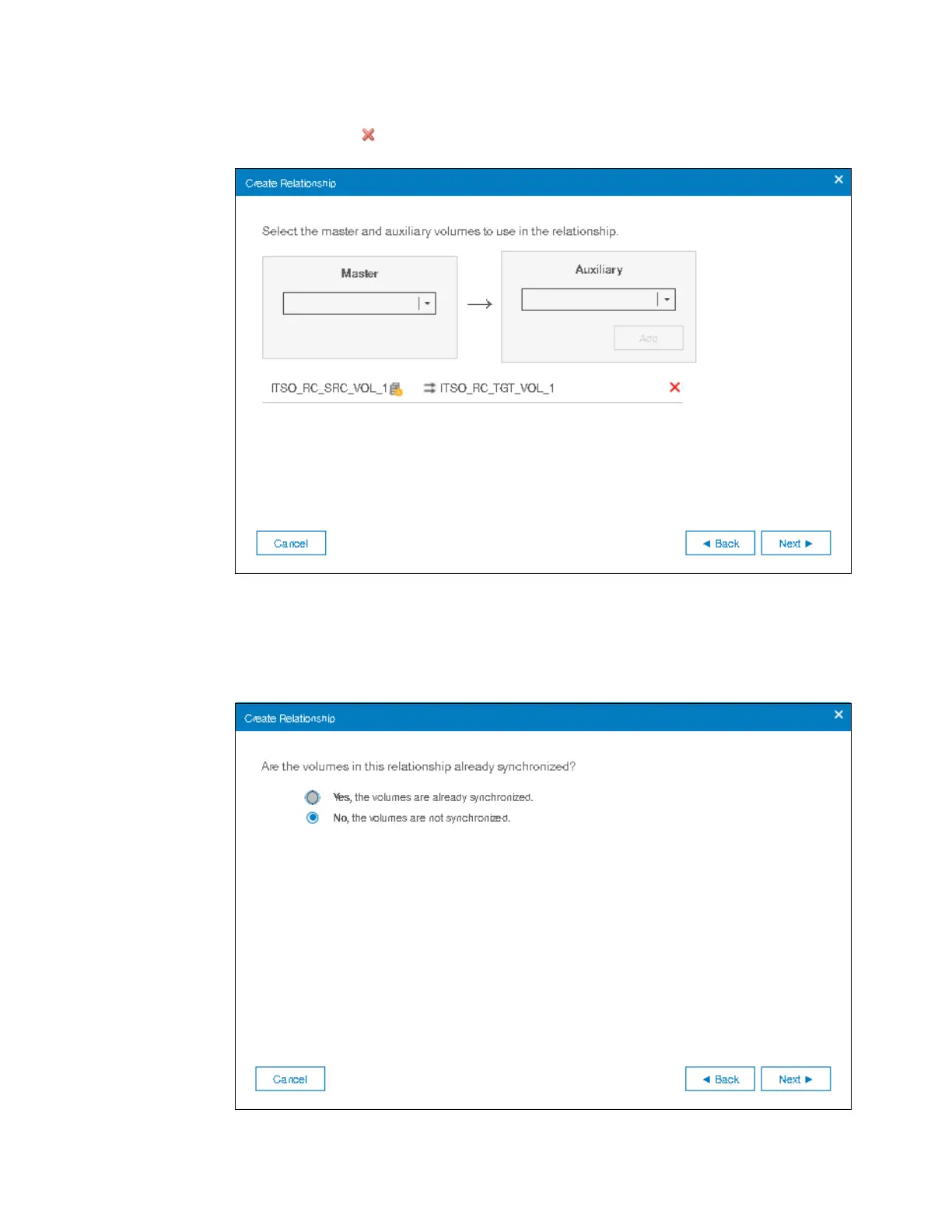

Figure 10-107 Create the relationships between the master and auxiliary volumes
10.After all of the relationships that you want to create are shown, click Next.
11.Specify whether the volumes are synchronized, as shown in Figure 10-108. Then, click
Next.
Figure 10-108 Volumes are already synchronized

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
