604 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

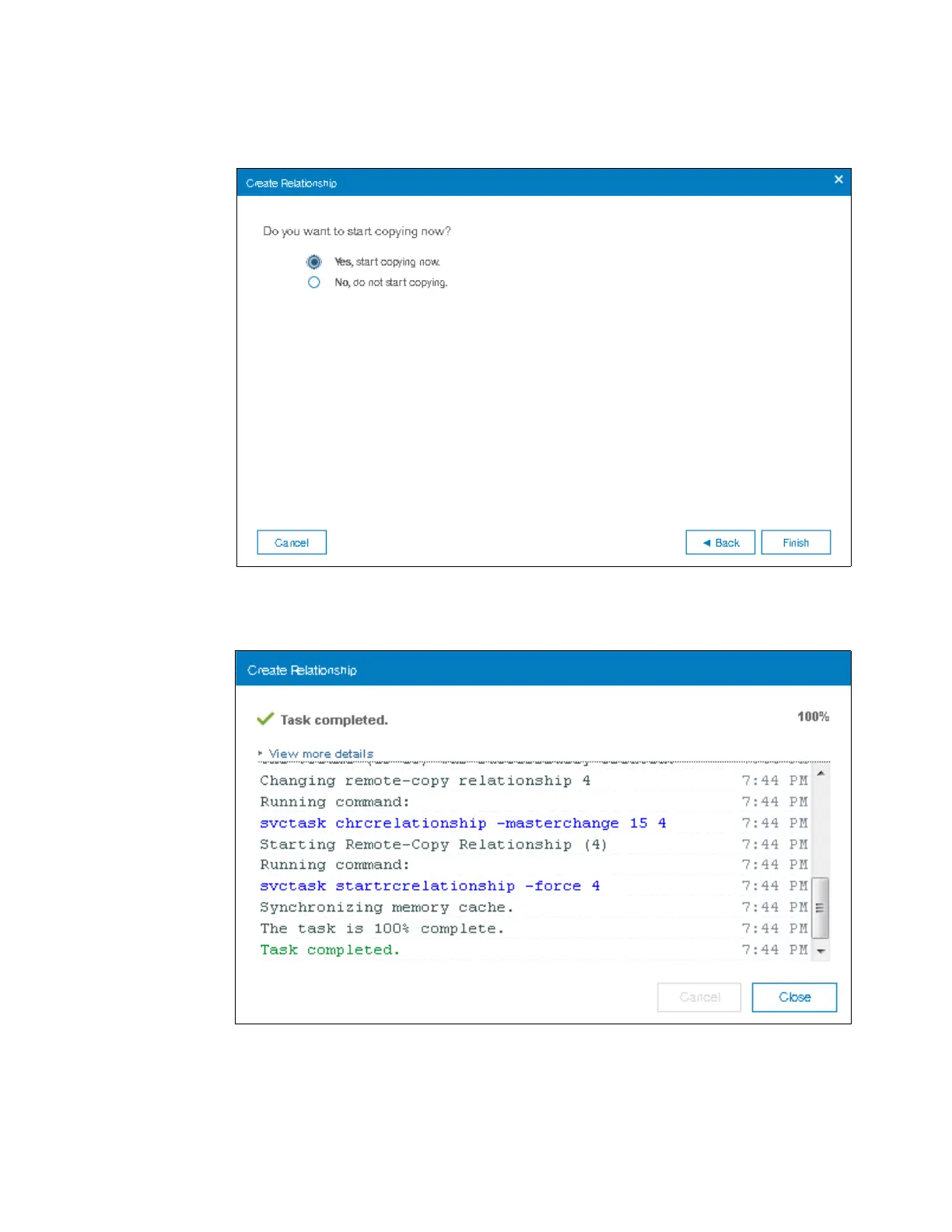

12.In the next window, select whether you want to start to copy the data and click Finish, as
shown in Figure 10-109.
Figure 10-109 Synchronize now
13.Figure 10-110 shows that the task to create the relationship is complete.
Figure 10-110 Creation of Remote Copy relationship complete
The relationships are visible in the Remote Copy pane. If you selected to copy the data,
you can see that the status is Consistent Copying. You can check the copying progress in
the Running Tasks status area.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
