606 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

4. In the next window, select where the auxiliary volumes are located, as shown in

Figure 10-114:

– On this system, which means that the volumes are local

– On another system, which means that you select the remote system in the drop-down

list

5. After you make a selection, click Next.

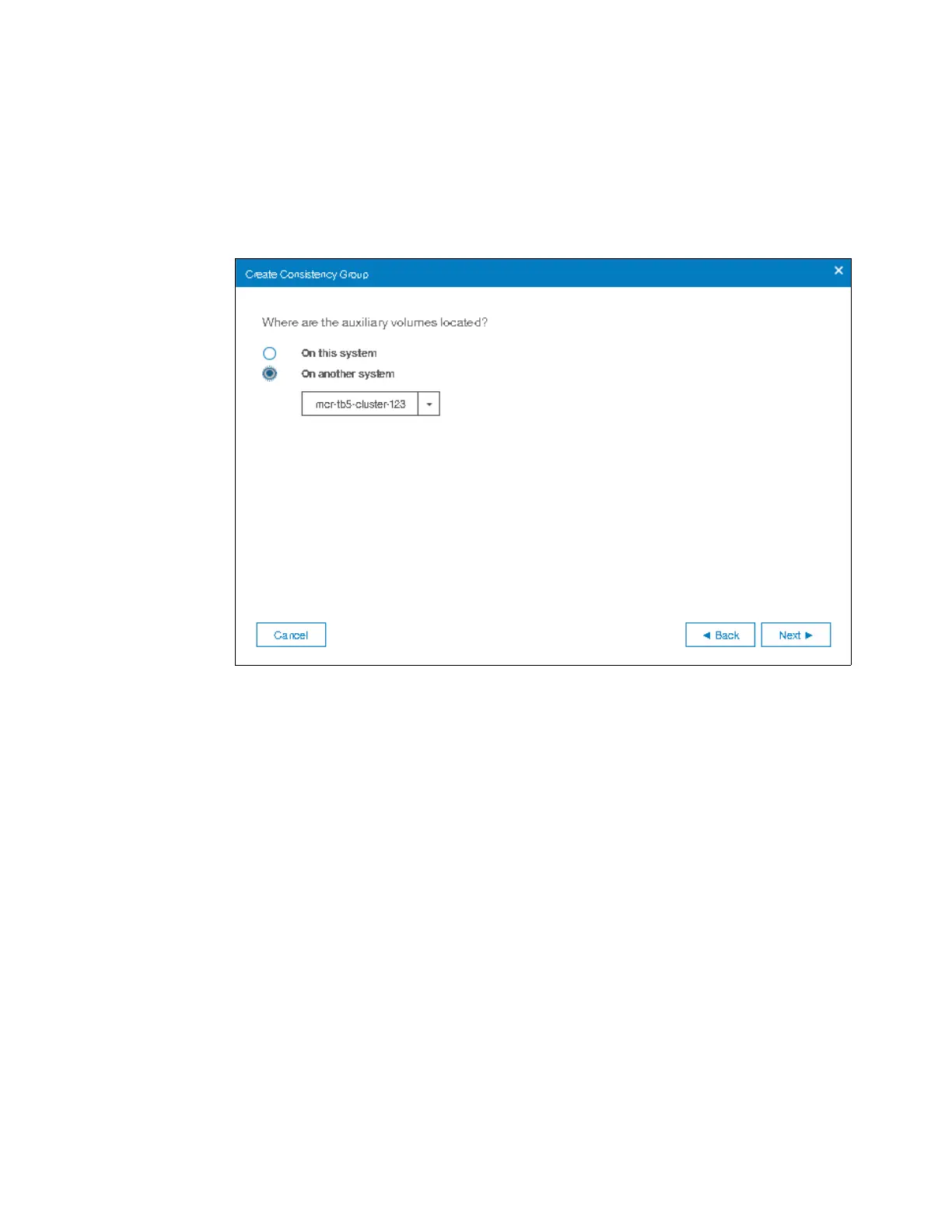

Figure 10-114 Location of auxiliary volumes
