Chapter 10. Copy services 607

6. Select whether you want to add relationships to this group, as shown in Figure 10-115.

The following options are available:

– If you select Yes, click Next to continue the wizard and go to step 7.

– If you select No, click Finish to create an empty Consistency Group that can be used

later.

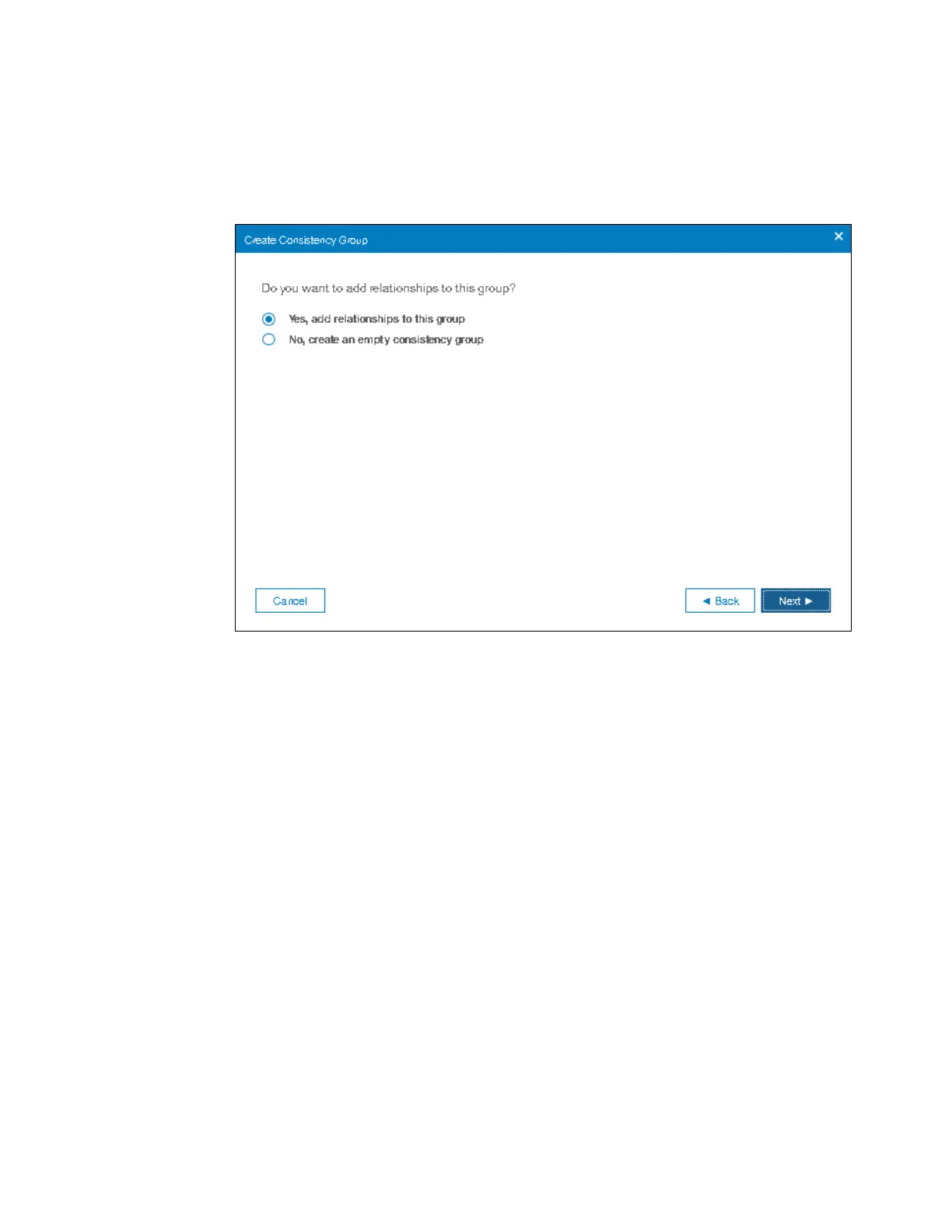

Figure 10-115 Add relationships to this group
