The Storwize V5030 supports two SAS chains for each control enclosure, and up to 10
expansion enclosures can be attached to each chain. The node canister uses SAS port 1 for
expansion enclosures.

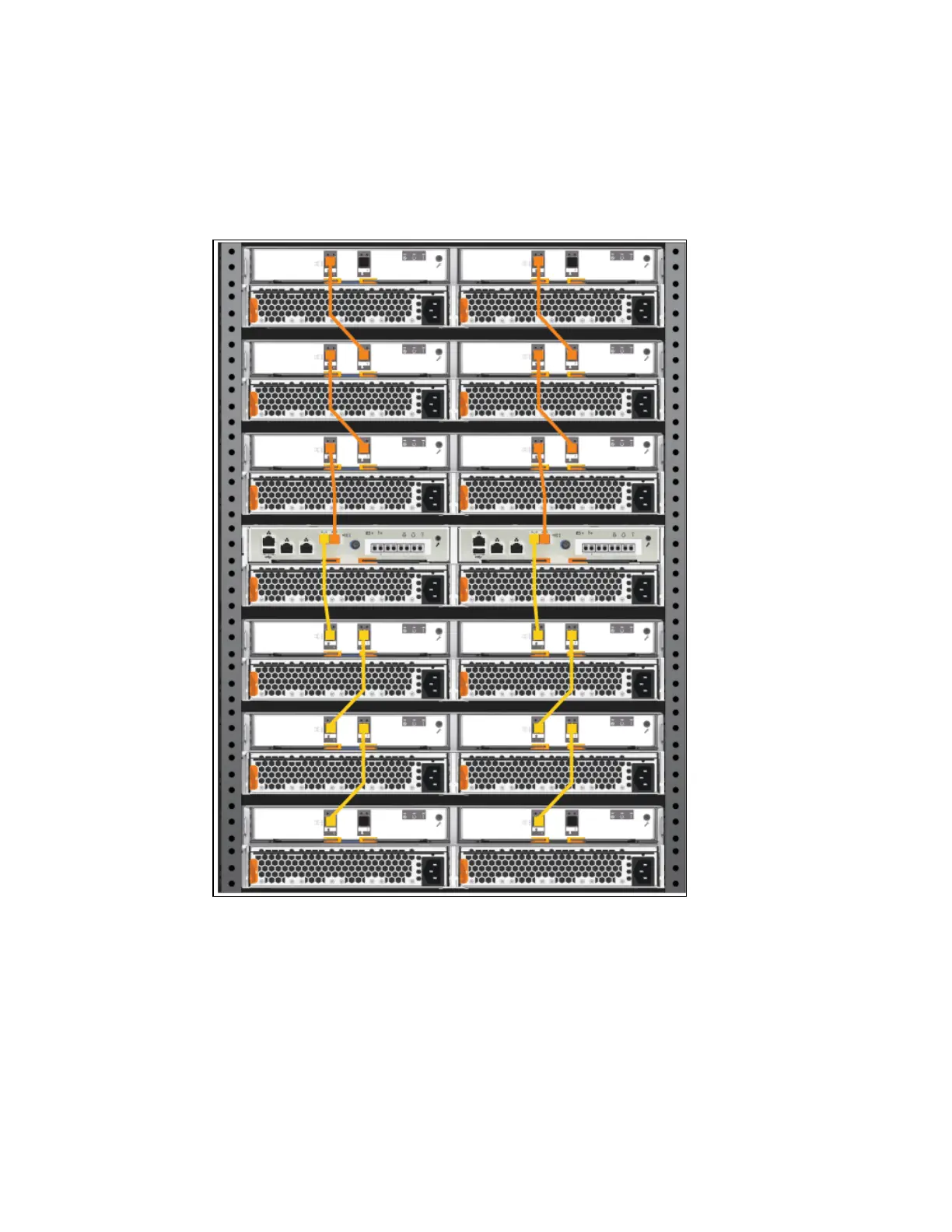

Figure 12-21 shows the SAS cabling on a Storwize V5030 with six attached expansion
enclosures (three enclosures in each chain).
Figure 12-21 SAS expansion cabling on the Storwize V5030

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
