738 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
Powering off a node canister
To power off a canister by using the GUI, complete the following steps:

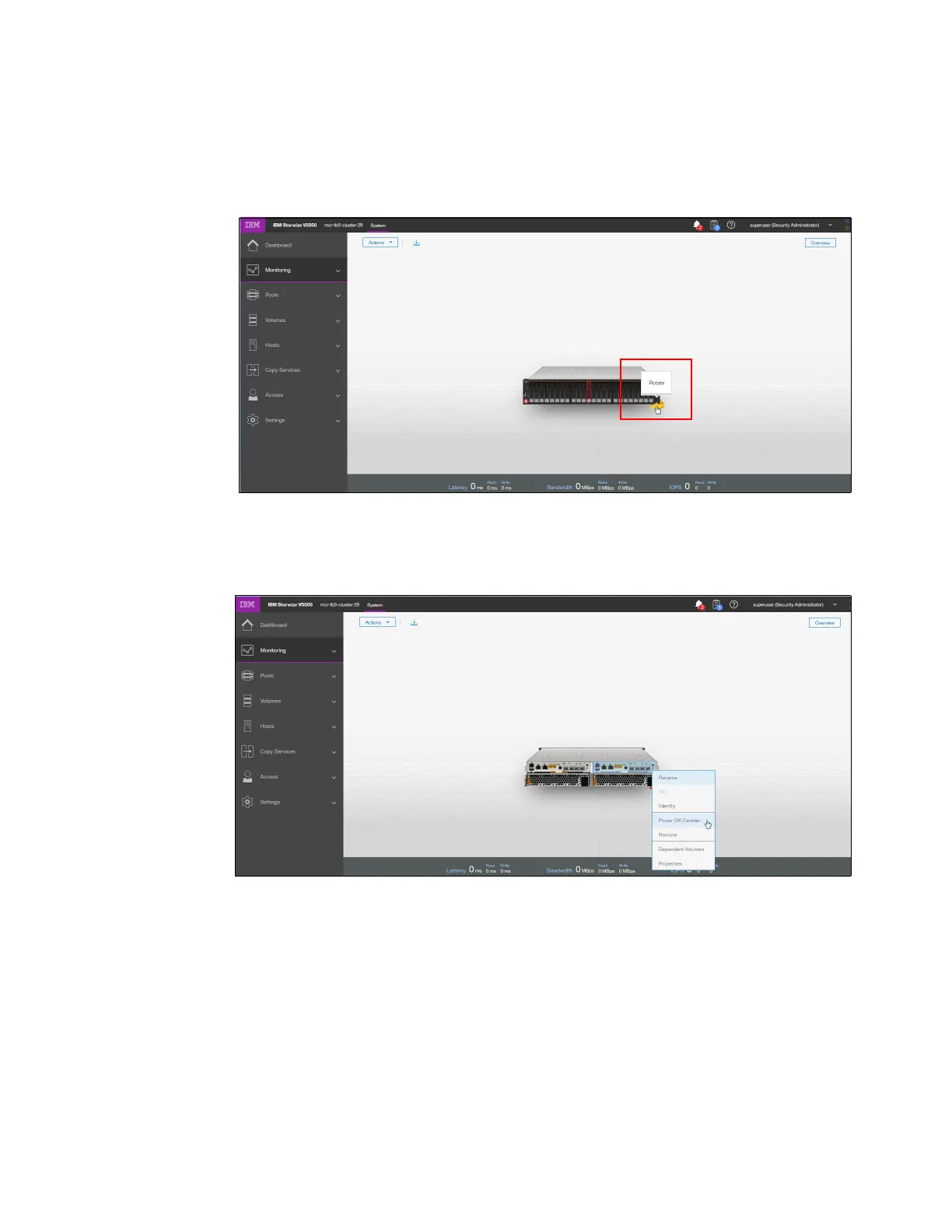

1. Browse to Monitoring → System and rotate the enclosure to the rear view, as shown in
Figure 12-111.
Figure 12-111 Rotating the system image
2. Right-click the required canister and select Power Off Canister, as shown in
Figure 12-112.
Figure 12-112 Powering off the canister

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
