768 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
5. If you want to add additional, secondary SKLM servers, then click “+” and fill the data for
secondary SKLM servers, as shown on Figure 13-32. You can define up to four SKLM
servers. Click Next when you are done.

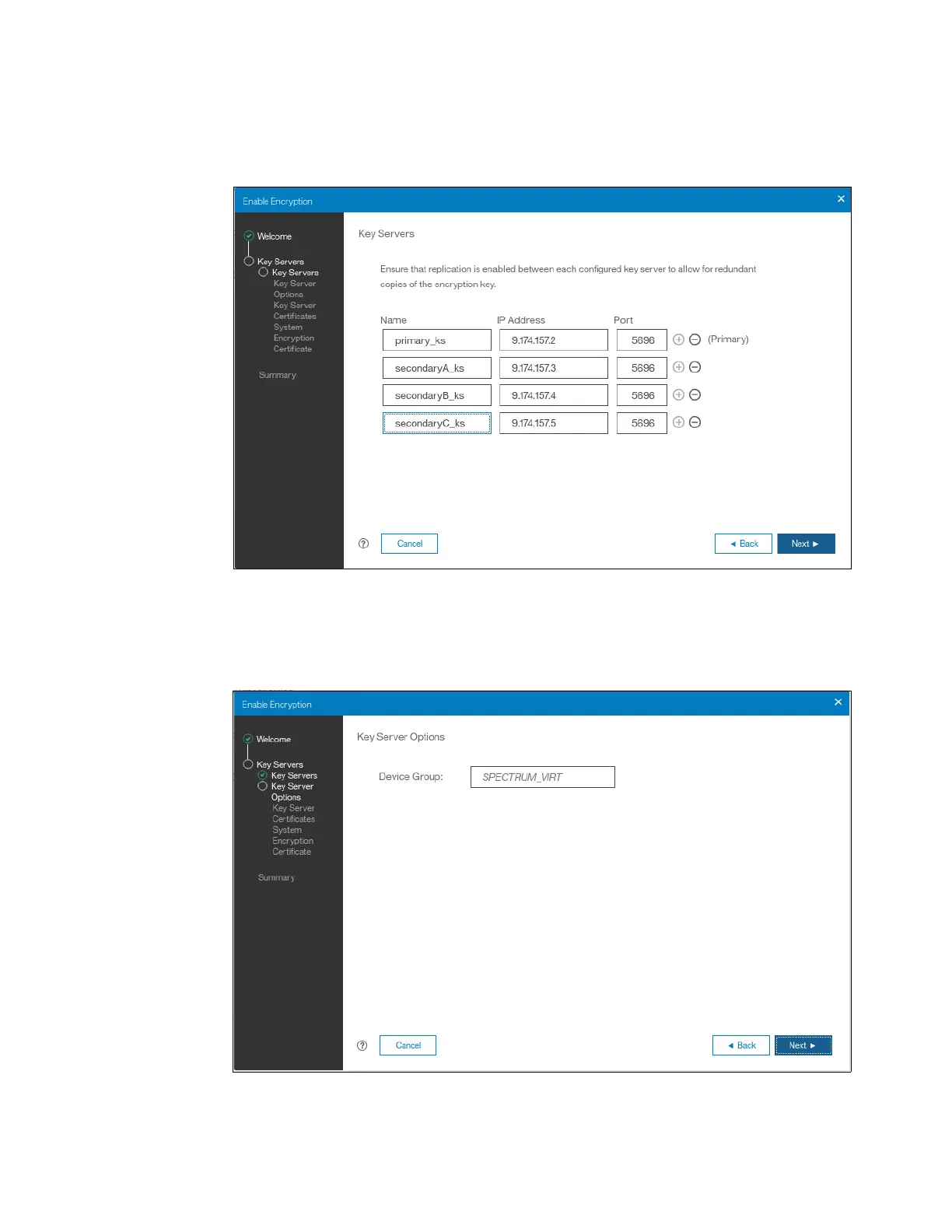

Figure 13-32 Configuring multiple SKLM servers
6. The next page in the wizard is a reminder that SPECTRUM_VIRT device group dedicated for
IBM Spectrum Virtualize systems must exist on the SKLM key servers. Make sure that this
device group exists and click Next to continue, as shown in Figure 13-33.
Figure 13-33 Checking key server device group

Table of Contents

Other manuals for IBM Storwize V5030

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the IBM Storwize V5030 and is the answer not in the manual?

IBM Storwize V5030 Specifications

General IconGeneral
ModelIBM Storwize V5030
CategoryStorage
Controller Enclosures1 or 2
Maximum Drives240
RAID Levels0, 1, 5, 6, 10
VirtualizationYes
Data CompressionYes
Maximum Hosts512
Form Factor2U
Drive TypesSAS, NL-SAS, SSD
Host Interface8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores8 per controller
