Chapter 13. Encryption 769
7. The next step is to enable secure communication between the IBM Spectrum Virtualize
system and the SKLM key servers. This can be done by either uploading the public
certificate of the certificate authority (CA) used to sign all the SKLM key server certificates,
or by uploading the public SSL certificate of each key server directly. Figure 13-34 shows
the case when an organization’s CA certificate is used. Click Next to proceed to the next
step.

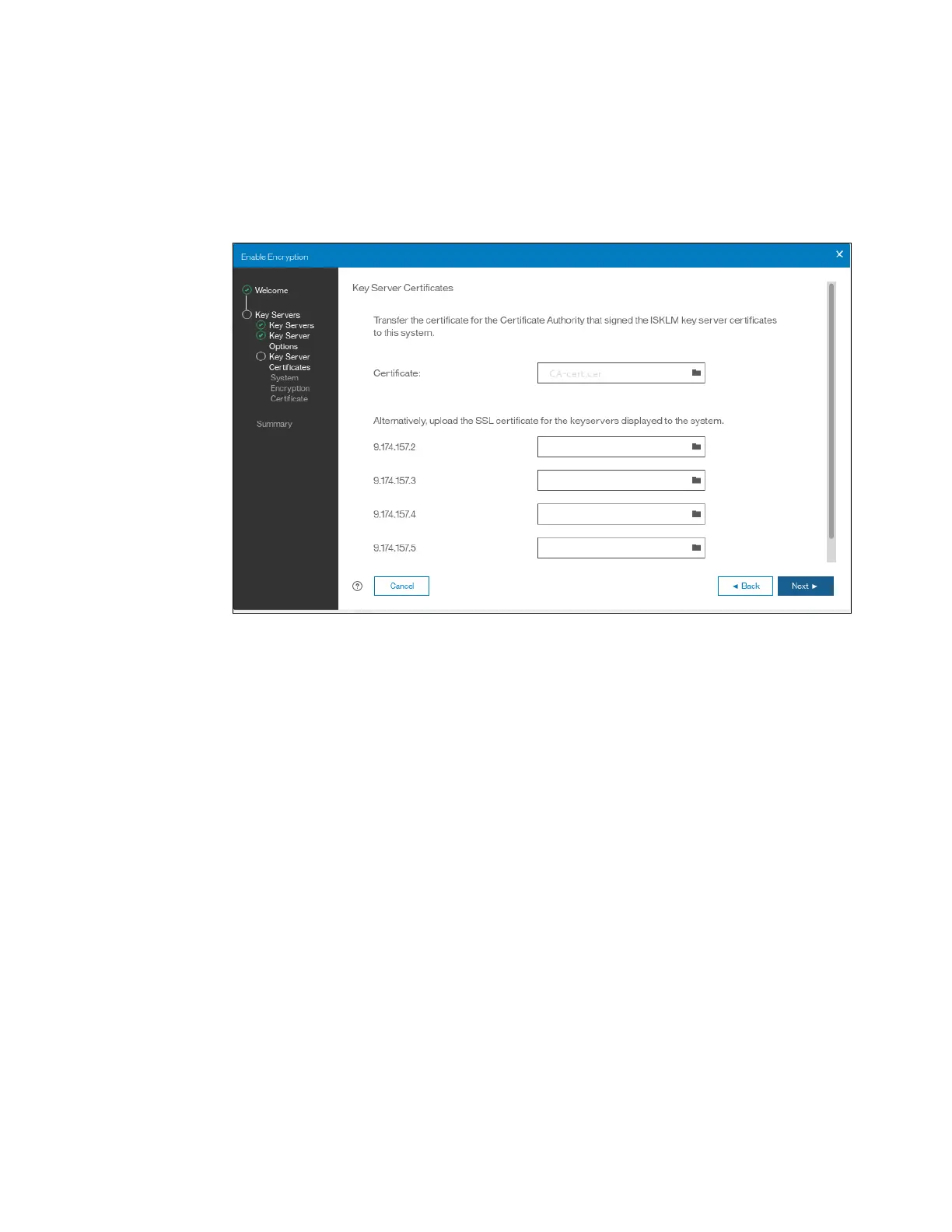

Figure 13-34 Uploading the key server or certification authority SSL certificate

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
