■ About protection indications
The IC-7700 has a 2-step protection function to pro-
tect the final power amplifiers.
The protector monitors the power amplifier tempera-
ture and activates when the temperature becomes
extremelyhigh.
• Power down transmission
Reduces the transmit output power to 100 W.
“LMT” appears beside the transmit indicator during
transmit.
• Transmission inhibit
Deactivates the transmitter.
The transmit indicator is displayed in gray during
transmit.
When the protector is activated, wait until the
power amplifier cools down using the transceiver in
stand-by or receive condition.
NOTE: DO NOT turn the transceiver power OFF
when the protector is ON. If you do, the cooling fan
will not function and it will take longer to cool the
transceiver.
The power amplifier temperature can be monitored in
the multi-function meter, TEMP gauge.
■ Screen saver function
The IC-7700 has a screen saver function to protect
the LCD from the “burn-in” effect.
q Push
EXIT/SET
several times to close a multi-func-
tion screen, if necessary.
w Push [SET]
F-7
to select set mode menu screen.
e Push [DISP]
F-3
to enter display set mode.
r Push [Y]
F-1
or [Z]
F-2
several times to select
the “Screen Saver Function” item.
t Rotate the main dial to select the desired time pe-
riod for the screen saver activation from 15, 30, 60
minutes and OFF.
 •Deactivatethescreensaverwith“OFF”selection.
y Push [Z]
F-2
to select the “Screen Saver Type”
item.
u Rotate the main dial to select the screen saver
type from “Bound,” “Rotation” and “Twist.”
 •Holddown[PREVIEW]
F-5
to display the pattern for
your reference.
i Push
EXIT/SET
twicetoexitsetmode.

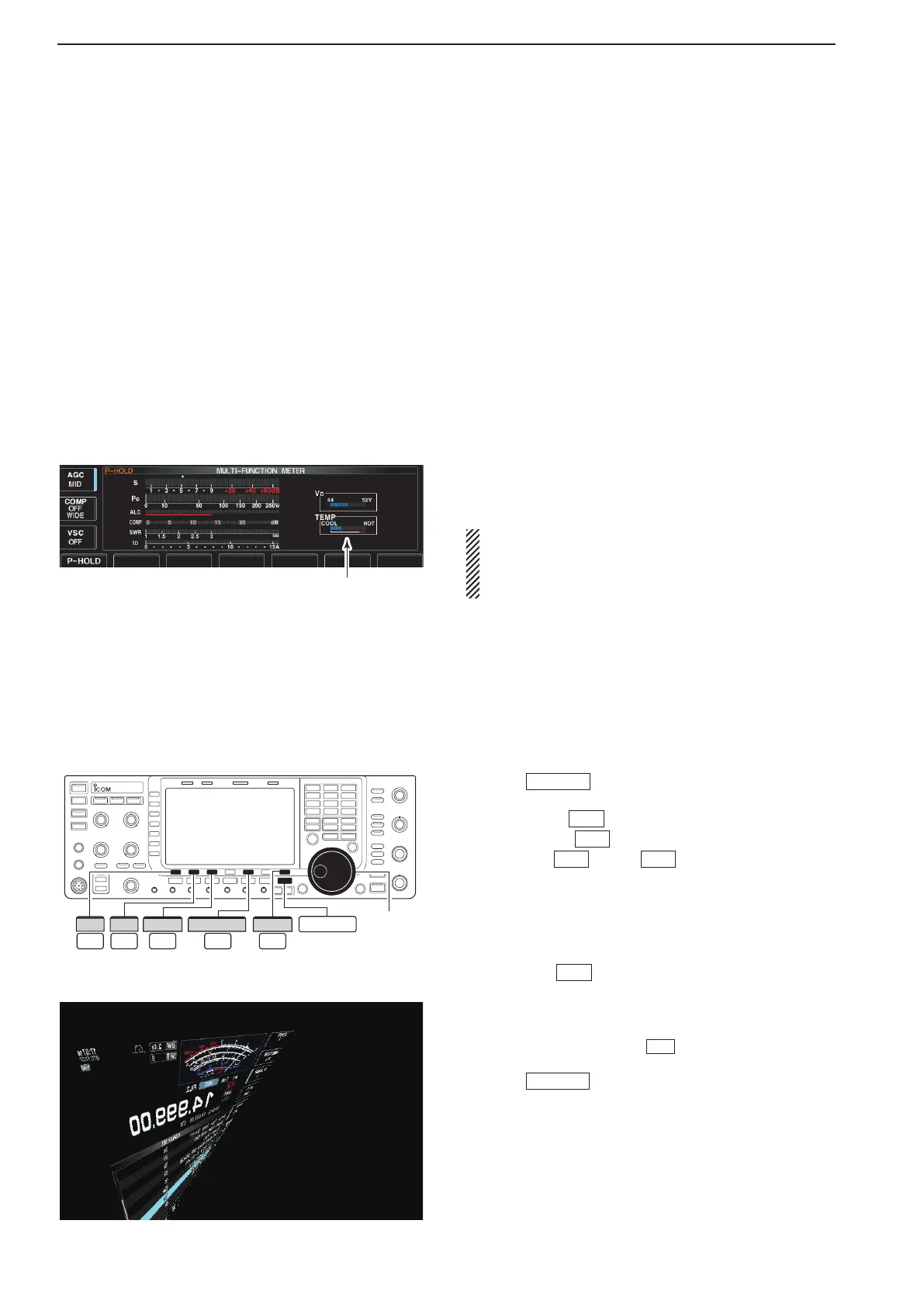

Check the temperature
Main dial
F-2 F-3F-1
DISP
F-5
PREVIEW
EXIT/SET
F-7
SET
∫ √
