3-8
■ Operating mode selection
SSB (USB/LSB), SSB data (USB data/LSB data),
CW, CW reverse (CW-R), RTTY, RTTY reverse
(RTTY-R), PSK, PSK reverse (PSK-R), AM, AM data,
FM and FM data modes are selectable in the IC-7700.
Select the desired operation mode as follows.
To select a mode of operation, push the desired mode
switch momentarily. Push the switch again to toggle
between USB and LSB, CW and CW-R, RTTY/RTTY-
R and PSK/PSK-R, AM and FM, if desired. Hold down
the switch for 1 second to toggle between RTTY and
RTTY-R, PSK and PSK-R, if desired.

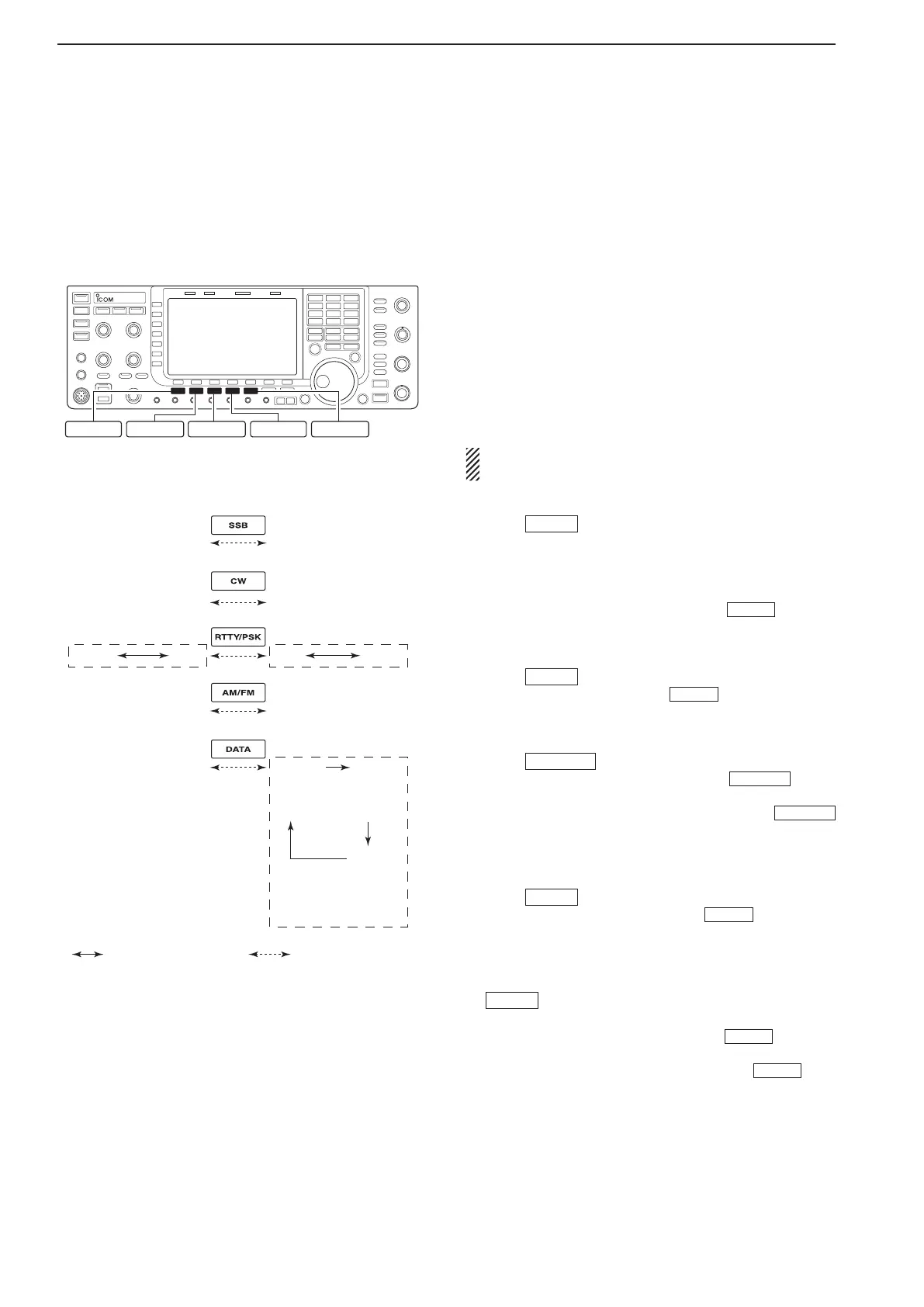

See the diagram below left for the order of selection.
Microphone signals are muted when data mode is
selected.
• Selecting SSB mode
➥ Push
SSB
to select USB or LSB.
•USBisselectedfirstwhenabove10MHz;orLSBis
selected first when below 10 MHz operation.
( USB is selected when 5 MHz band is selected for the
USA version.)
•AfterUSBorLSBisselected,push
SSB
to toggle
between USB and LSB.
• Selecting CW mode
➥ Push
CW
to select CW.
•AfterCWisselected,push
CW
to toggle between
CW and CW reverse mode.
• Selecting RTTY/PSK mode
➥ Push
RTTY/PSK
to select RTTY or PSK.
•AfterRTTYorPSKisselected,push
RTTY/PSK
to tog-
gle between RTTY and PSK.
•AfterRTTYorPSKisselected,holddown
RTTY/PSK
for 1 second to toggle between RTTY and RTTY re-
verse, or, PSK and PSK reverse mode, respectively.
• Selecting AM/FM mode
➥ Push
AM/FM
to select AM or FM.
•AfterAMorFMisselected,push
AM/FM
to toggle be-
tween AM and FM.
• Selecting DATA mode
➥ After USB, LSB, AM or FM is selected, push
DATA
to select USB data, LSB data, AM data or
FM data mode, respectively.
•Afterdatamodeisselected,push
DATA
to toggle
between regular voice and data mode.
•Afterdatamodeisselected,holddown
DATA
for 1
second to select data 1, 2 and 3 in sequence.
3
BASIC OPERATIONS
RTTY/PSK AM/FM DATA
SSB CW
USB
CW
AM
Hold down mode
switch for 1 second.
Push mode switch
momentarily.
LSB
CW-R
RTTY-R RTTY PSK PSK-R
FM
USB
LSB
AM
FM
USB-D1
LSB-D1
AM-D1
FM-D1
USB-D2
LSB-D2
AM-D2
FM-D2
USB-D3
LSB-D3
AM-D3
FM-D3
