POC-W24C-ULT3 FHD Medical Panel PC
Page 107

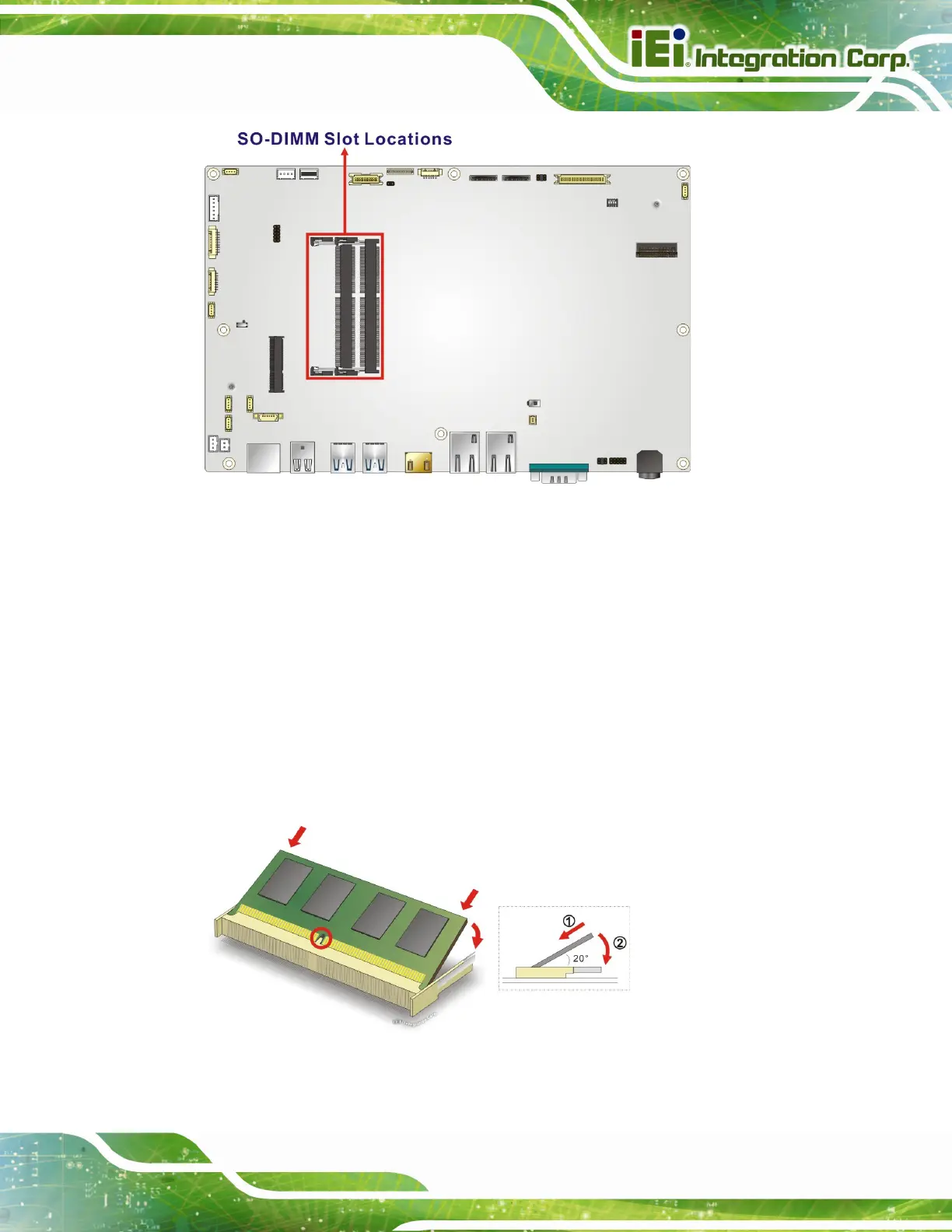

Figure 6-3: SO-DIMM Slot Locations
Step 3: To remove the SO-DIMM, push the two handles outwards. The memory module
is ejected by a mechanism in the socket.
Step 4: Grasp the memory module by the edges and carefully pull it out of the socket.
Step 5: To install a new SO-DIMM, align the SO-DIMM so the notch on the memory
module lines up with the notch on the memory socket (
840H840H673H709HFigure 6-4).
Step 6: Push the SO-DIMM into the socket at an angle (
841H841H674H710HFigure 6-4).
Step 7: Gently push downwards and the arms clip into place (
841H841H674H711HFigure 6-4). Step 0:
Figure 6-4: SO-DIMM Installation
