IEI Technology POC-W24C-ULT3 User Manual

POC-W24C-ULT3 FHD Medical Panel PC
Page 23

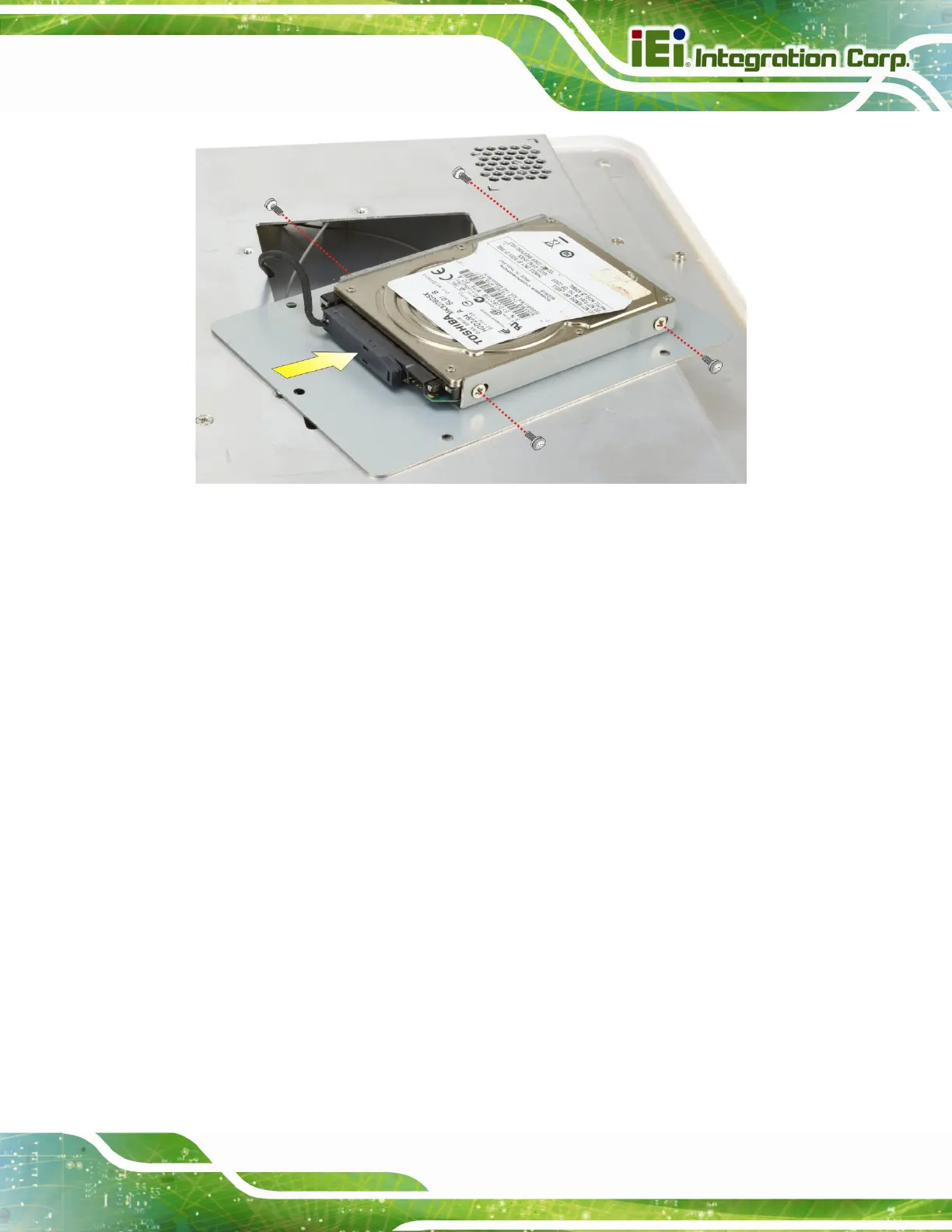

Figure 3-3: HDD Installation
Step 6: Connect the SATA cable from the POC-W24C-ULT3 to the rear of the HDD
(
Figure 3-3).
Step 7: Replace the HDD bracket by securing the six retention screws previously
removed (
Figure 3-2).
Step 8: Replace the back cover. Step 0:
3.5 Handset Installation (Optional)
An optional phone handset can be installed on the side of the POC-W24C-ULT3 to make
VoIP calls. To install the handset and the holder, please follow the instruction below.
Step 1: Locate the two retention screw holes for installing the handset holder on the rear
panel (
Figure 3-4).
