IEI Technology POC-W24C-ULT3 User Manual

POC-W24C-ULT3 FHD Medical Panel PC
Page 123

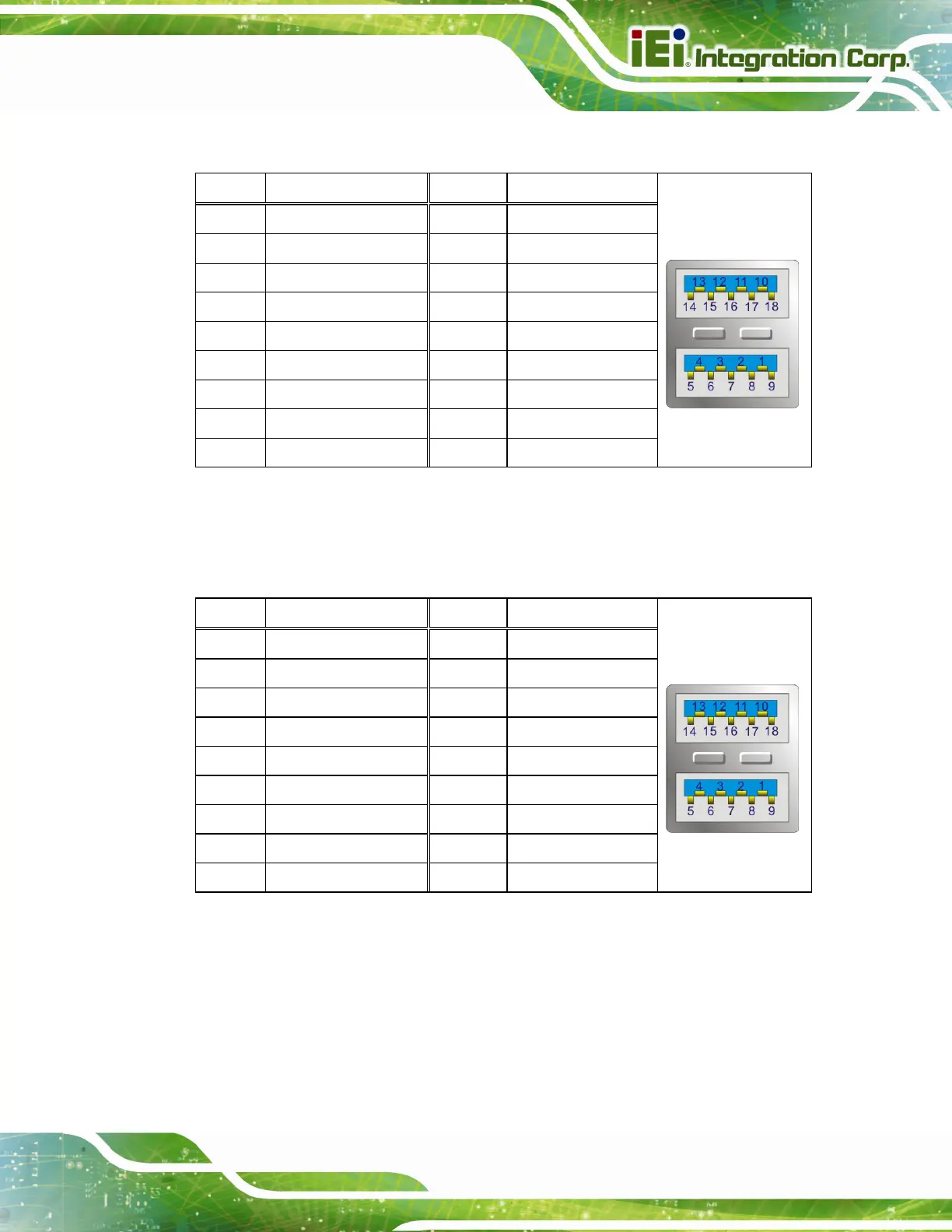

7.3.6 USB 3.0 Connectors (USB_CON1)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +5A 10 +5A
2 2.0_D0- 11 2.0_D1-
3 2.0_D0+ 12 2.0_D1+
4 GND 13 GND
5 3.0_RX0- 14 3.0_RX1-
6 3.0_RX0+ 15 3.0_RX1+
7 GND 16 GND
8 3.0_TX0- 17 3.0_TX1-
9 3.0_TX0+ 18 3.0_TX1+
Table 7-28: USB 3.0 Connector (USB_CON12) Pinouts
7.3.7 USB 3.0 Connectors (USB_CON2)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +5A 10 +5A
2 2.0_D2- 11 2.0_D3-
3 2.0_D2+ 12 2.0_D3+
4 GND 13 GND
5 3.0_RX2- 14 3.0_RX3-
6 3.0_RX2+ 15 3.0_RX3+
7 GND 16 GND
8 3.0_TX2- 17 3.0_TX3-
9 3.0_TX2+ 18 3.0_TX3+
Table 7-29: USB 3.0 Connector (USB_CON2) Pinouts
