POC-W24C-ULT3 FHD Medical Panel PC

Page 36

NOTE:

Please refer to the IRFR-100 user guide in the driver CD

(IRFR-100_AP_UserGuide.pdf) for detailed instruction on how to use

the IRFR-100.

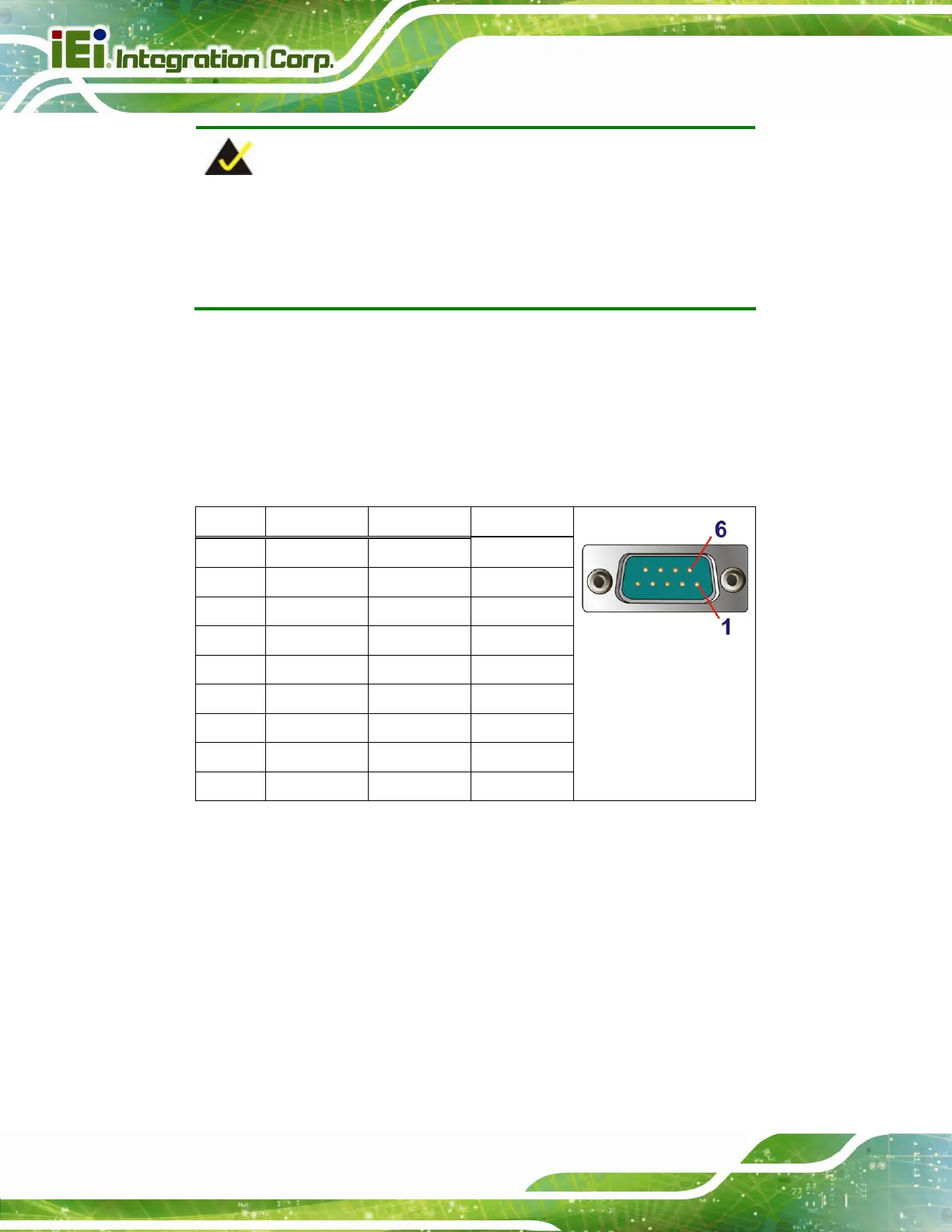

3.9 RS-232/422/485 Serial Port Connection

The bottom panel of the POC-W24C-ULT3 has one DB-9 male connectors for

RS-232/422/485 connection. The serial communication mode selection can be made

through the BIOS options. Please refer to Section

4.3.3.1.1 for detailed information. The

pinouts of the DB-9 connector are listed below.

Pin RS-232 RS-422 RS-485

1 DCD TXD422- TXD485-

2 RX TXD422+ TXD485+

3 TX RXD422+

4 DTR RXD422-

5 GND

6 DSR

7 RTS

8 CTS

9 RI

Table 3-2: RS-232/422/485 Serial Port Pinouts
