IEI Technology POC-W24C-ULT3 User Manual

POC-W24C-ULT3 FHD Medical Panel PC
Page 7
1.6 Bottom Panel
The bottom panel of the POC-W24C-ULT3 has the following connectors and switches
(
Figure 1-5):
 1 x 12 V ~ 28 V DC input power jack
 1 x RS-232/422/485 DB-9 connector
 1 x Barcode reader RJ-11 connector
 2 x GbE RJ-45 connectors
 4 x USB 3.0 connectors
 2 x USB 2.0 connectors
 1 x HDMI output connector
 1 x AT/ATX switch
 1 x Reset button

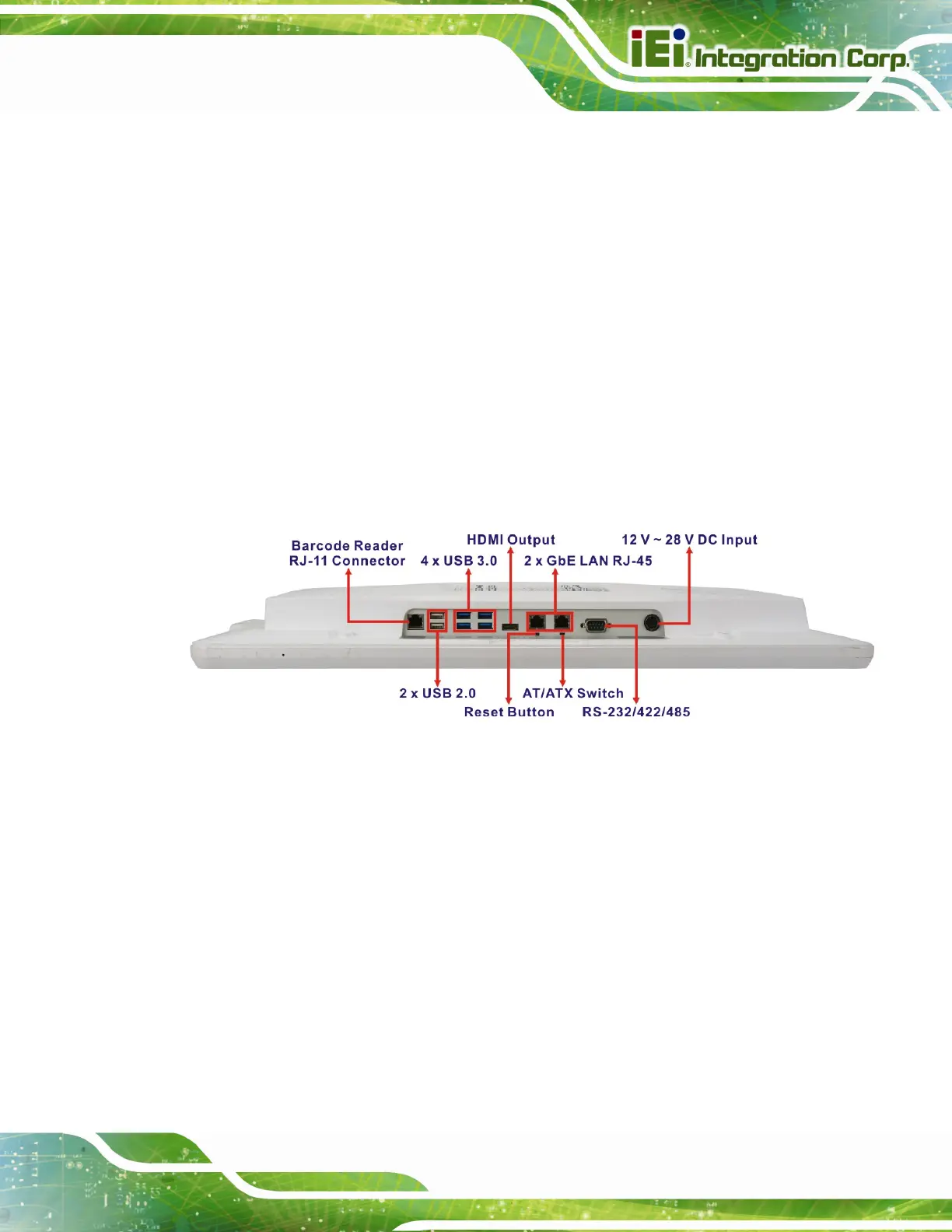

Figure 1-5: Bottom Panel

IEI Technology POC-W24C-ULT3 Specifications

General

Brand	IEI Technology
Model	POC-W24C-ULT3
Category	Touch Panel
Language	English
