POC-W24C-ULT3 FHD Medical Panel PC
Page 33
Step 4: Secure the combo reader to the system by inserting two retention screws
(M3x5L) into the rear panel of the POC-W24C-ULT3 and tightening them.

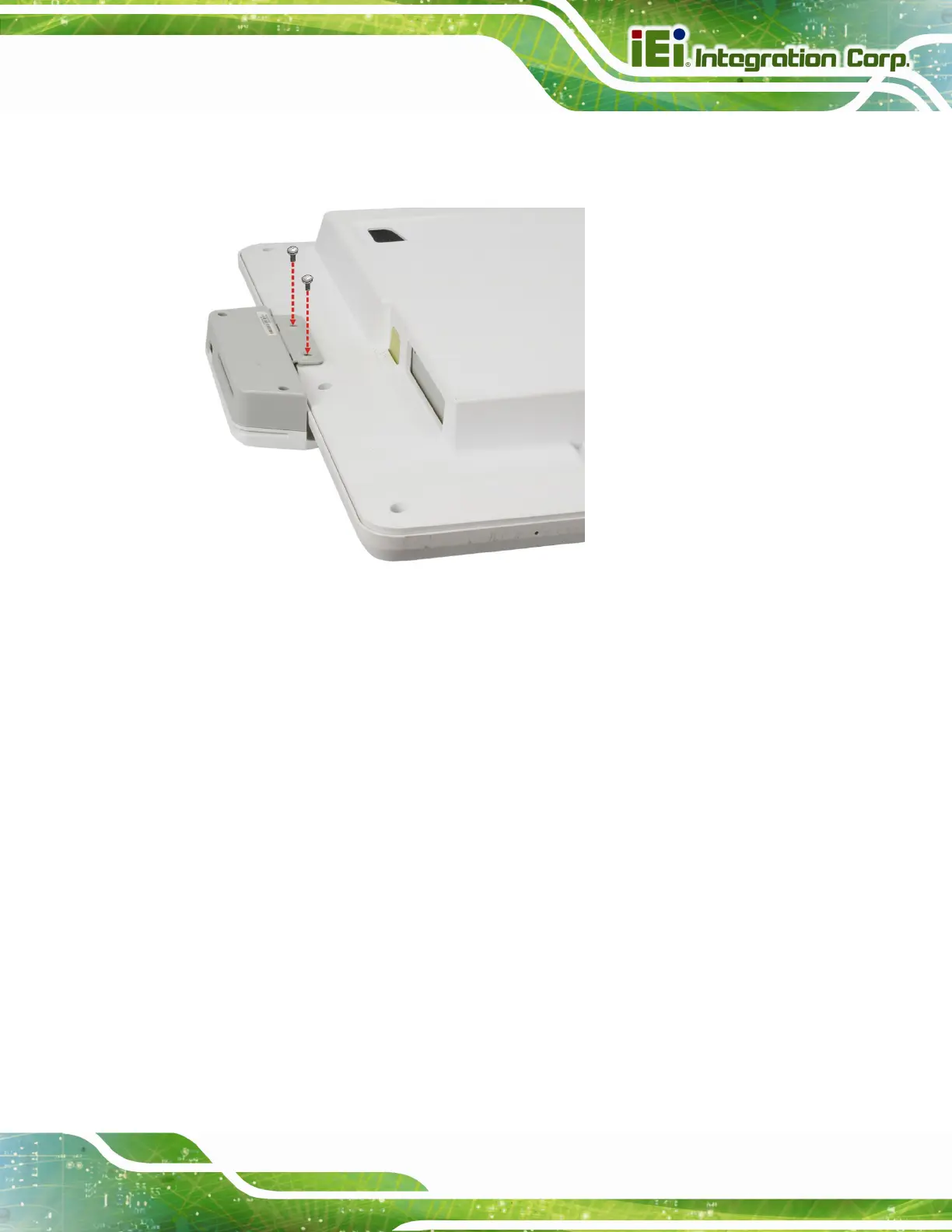

Figure 3-17: Combo Reader Installation
Step 5: Install the drivers for these three readers by following the instructions described
in Chapter 5:
Section
5.11.1: SCR Driver
Section
5.11.2: MSR Driver
Section
5.11.3: Fingerprint Reader Driver
3.8 Using RFID Reader (Optional)
The POC-W24C-ULT3 may come with an optional RFID reader pre-installed inside the
bottom left corner of the front panel (
Figure 1-2). To use the RFID reader, follow the steps
below.
Step 1: Install the RFID driver (refer to Section
5.10).
Step 2: Locate the IRFR-100.exe file in the following folder of the driver CD:
\Docs\12.Other\POCP-MF-RFID-R10\RFID\D490. Copy the IRFR-100.exe
program to the desktop.
