IEI Technology POC-W24C-ULT3 User Manual

POC-W24C-ULT3 FHD Medical Panel PC
Page 29
3.6 Handle Installation (Optional)
An optional handle can be installed on the POC-W24C-ULT3 for the user to easily adjust
the viewing angle and the position of the POC-W24C-ULT3. To install the handle, please
follow the instruction below.
Step 1: Locate the retention screw holes for installing the handle on the rear panel
(
Figure 3-10). If a cable cover is installed on the rear panel, please remove it
first.
Step 2: Secure the handle with the POC-W24C-ULT3 by inserting eight retention screws
(M3*6L, flat head).

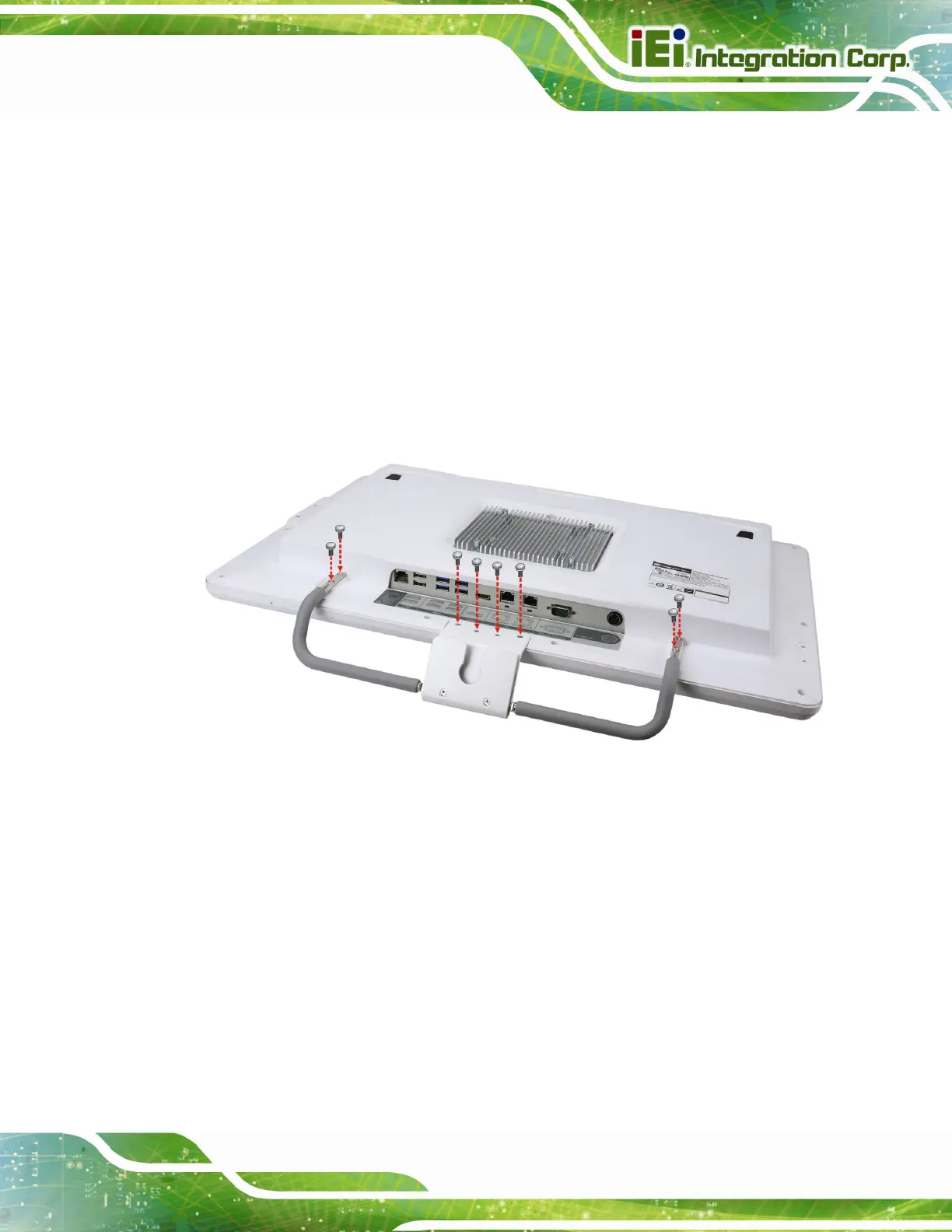

Figure 3-10: Handle Installation
3.6.1 Barcode Reader Installation
The optional handle may come with a barcode reader set which also contains a reading
light with three levels of brightness. To install the barcode reader set, please follow the
instruction below.
Step 1: Follow the instruction described in Section
3.6 to install the handle.
Step 2: Insert the barcode reader set into the slot in the center of the handle. To be able
to insert the barcode reader, the side with barcode reader must face toward the
right side of the POC-W24C-ULT3 as shown in
Figure 3-11.
