POC-W24C-ULT3 FHD Medical Panel PC
Page 108
6.6 PCIe Mini Card Installation
The POC-W24C-ULT3 equips with a half-size PCIe Mini card slot that supports mSATA.
To install a PCIe Mini card into the POC-W24C-ULT3, please follow the steps below:
Step 1: Remove the covers. See Section
712H6.4.
Step 2: Locate the PCIe Mini card slot (M_PCIE1) on the motherboard. Remove the
preinstalled retention screw on the screw pillar of the PCIe Mini slot (
713HFigure 6-5).

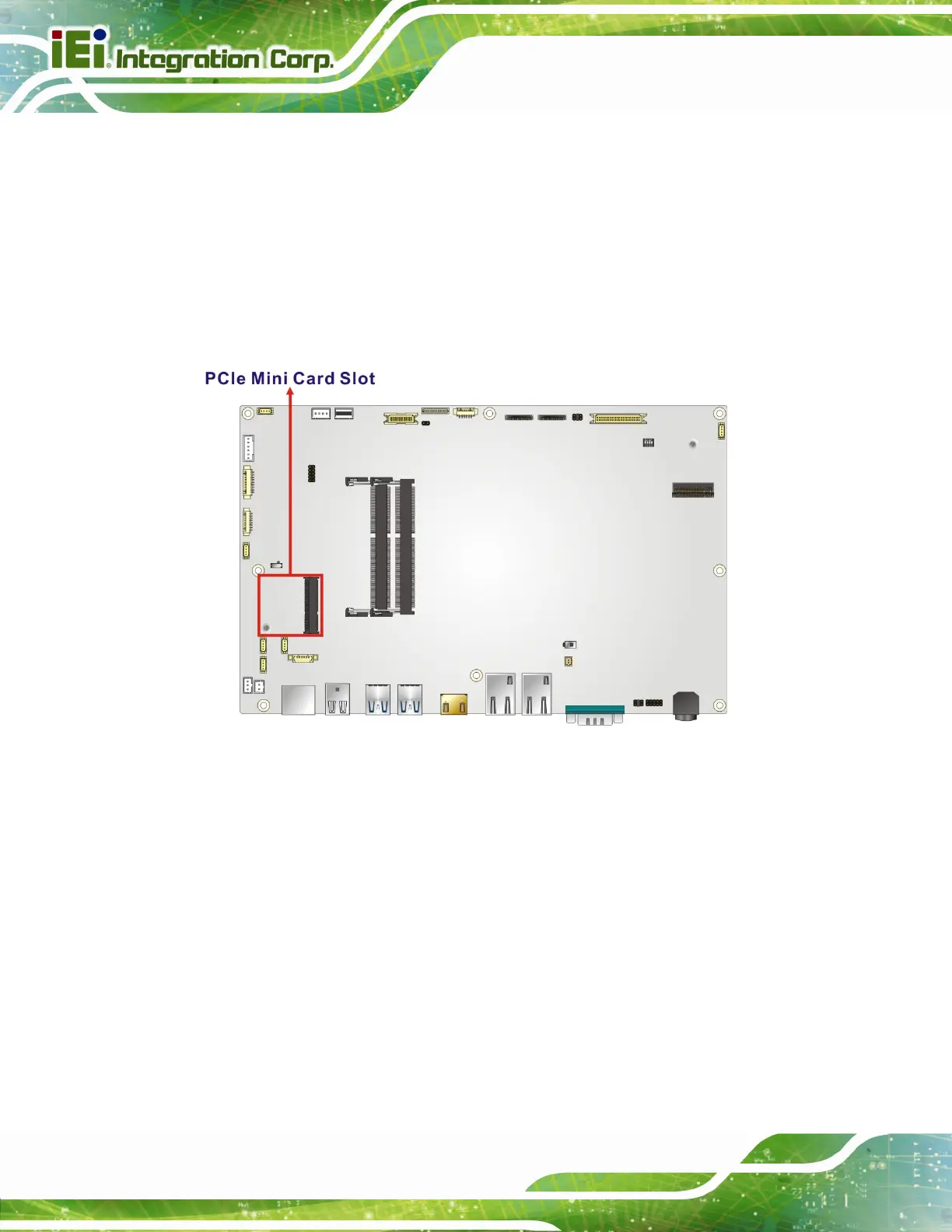

Figure 6-5: PCIe Mini Card Slot Location
Step 3: Line up the notch on the PCIe Mini card with the notch on the connector. Slide
the PCIe Mini card into the socket at an angle of about 20º (
714HFigure 6-6).
Step 4: Press the other end of the PCIe Mini card down and secure the card with the
previously removed retention screw (
715HFigure 6-6).803HStep 0:
