POC-W24C-ULT3 FHD Medical Panel PC
Page 21
Anti-static Discharge: If a user open the rear panel of the medical panel PC,
to configure the jumpers or plug in added peripheral devices, ground
themselves first and wear an anti-static wristband.
3.3 Installation and Configuration Steps
The following installation steps must be followed.
Step 1: Unpack the medical panel PC.
Step 2: Install an HDD.
Step 3: Install necessary accessories (handset, handle or combo reader).
Step 4: Configure the system.
Step 5: Connect peripheral devices to the medical panel PC.
Step 6: Mount the medical panel PC. Step 0:
3.4 HDD Installation
To install the HDD into the system, please follow the steps below:

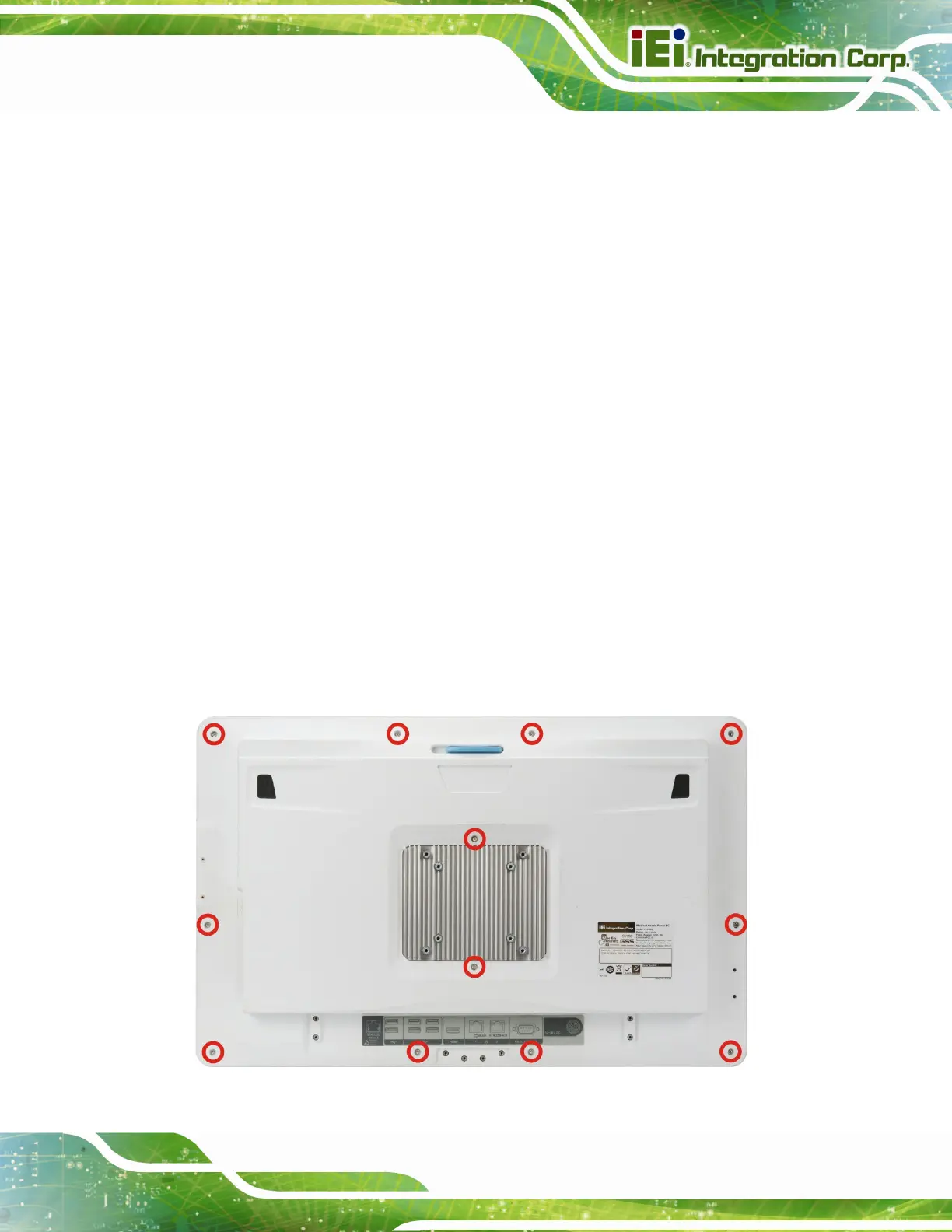

Step 1: Remove the twelve retention screws from the back cover (
Figure 3-1).
Figure 3-1: Back Cover Retention Screws
