IEI Technology POC-W24C-ULT3 User Manual

POC-W24C-ULT3 FHD Medical Panel PC

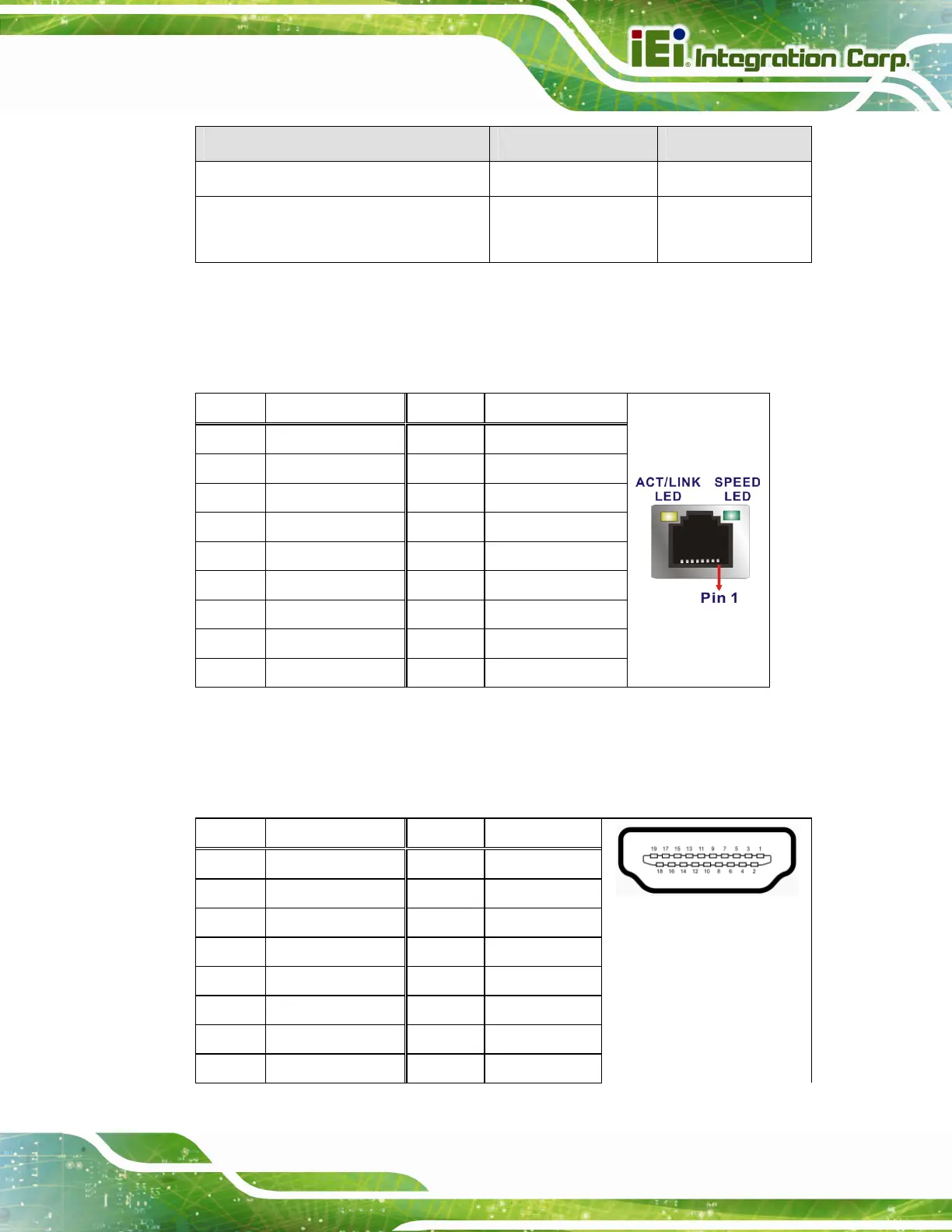

Page 121
Connector Type Label
USB 2.0 connectors USB 2.0 port USB20_CN1
USB 3.0 connectors USB 3.0 port
USB_CON1
USB_CON2
Table 7-22: Rear Panel Connectors
7.3.1 GbE Connectors (LAN1 & LAN2)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 MDI0+ 10 MDI3-
2 MDI0- 11 +3.3Vsus
3 MDI1+ 12 ACT-1
4 MDI1- 13 LINK1000 +3.3Vsus
5 N/A 14 LINK1000 +3.3Vsus
6 N/A 15 GND
7 MDI2+ 16 GND
8 MDI2- 17 N/A
9 MDI3+ 18 N/A
Table 7-23: GbE Connectors (LAN1 & LAN2) Pinouts
7.3.2 HDMI Output Connector (HDMI_OUT1)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 HDMI_DATA2+ 11 GND
2 GND 12 HDMI_CLK#
3 HDMI_DATA2#- 13 N/C
4 HDMI_DATA1+ 14 N/C
5 GND 15 HDMI_SCL
6 HDMI_DATA1#- 16 HDMI_SDA
7 HDMI_DATA0+ 17 GND
8 GND 18 +5VCC
