7.1 Peripheral Interface Connectors
The POC-W24C-ULT3 panel PC motherboard comes with a number of peripheral interface
connectors and configuration jumpers. The connector locations are shown in
930H716HFigure 7-1.
The Pin 1 locations of the on-board connectors are also indicated in the diagram below. The
connector pinouts for these connectors are listed in the following sections.

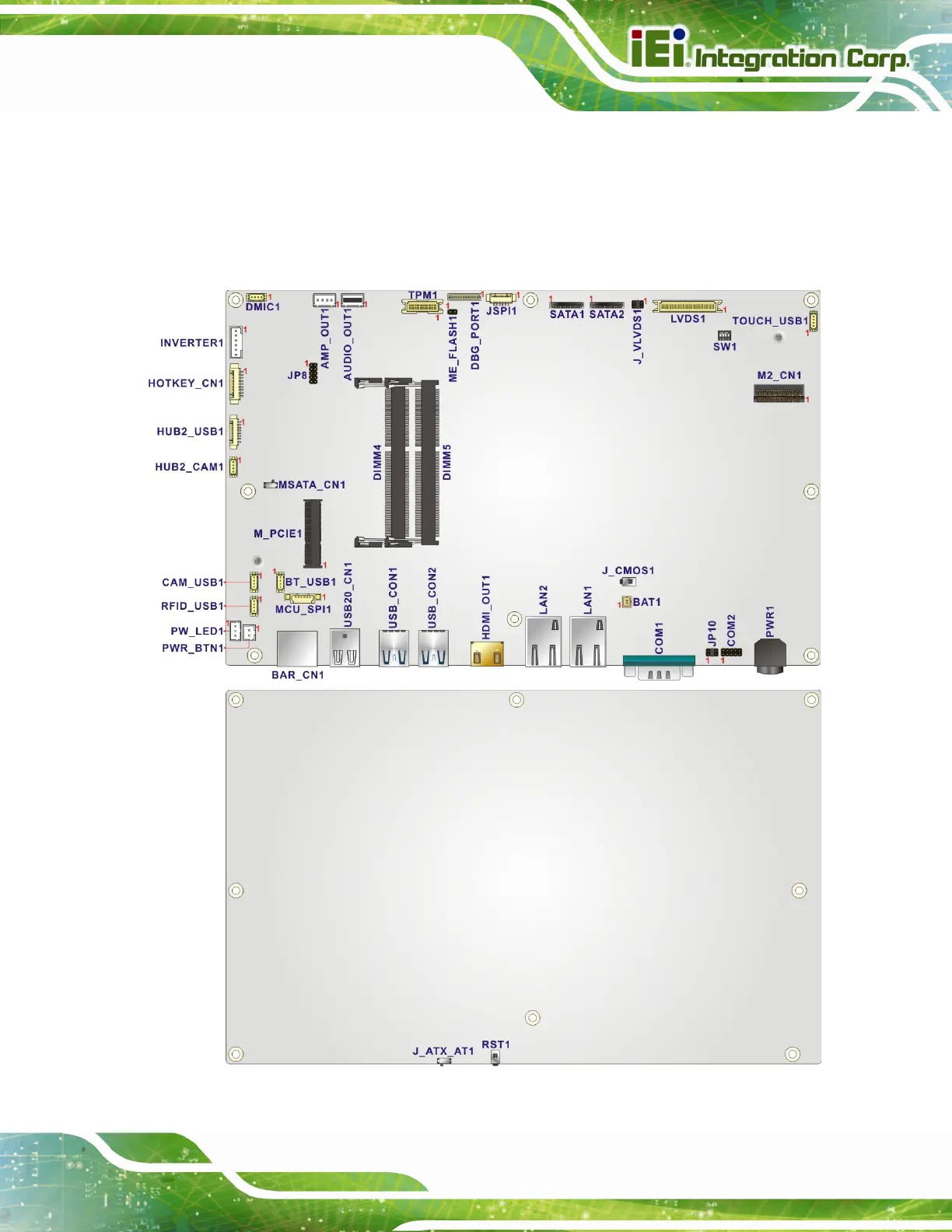

Figure 7-1: Main Board Layout Diagram
