POC-W24C-ULT3 FHD Medical Panel PC

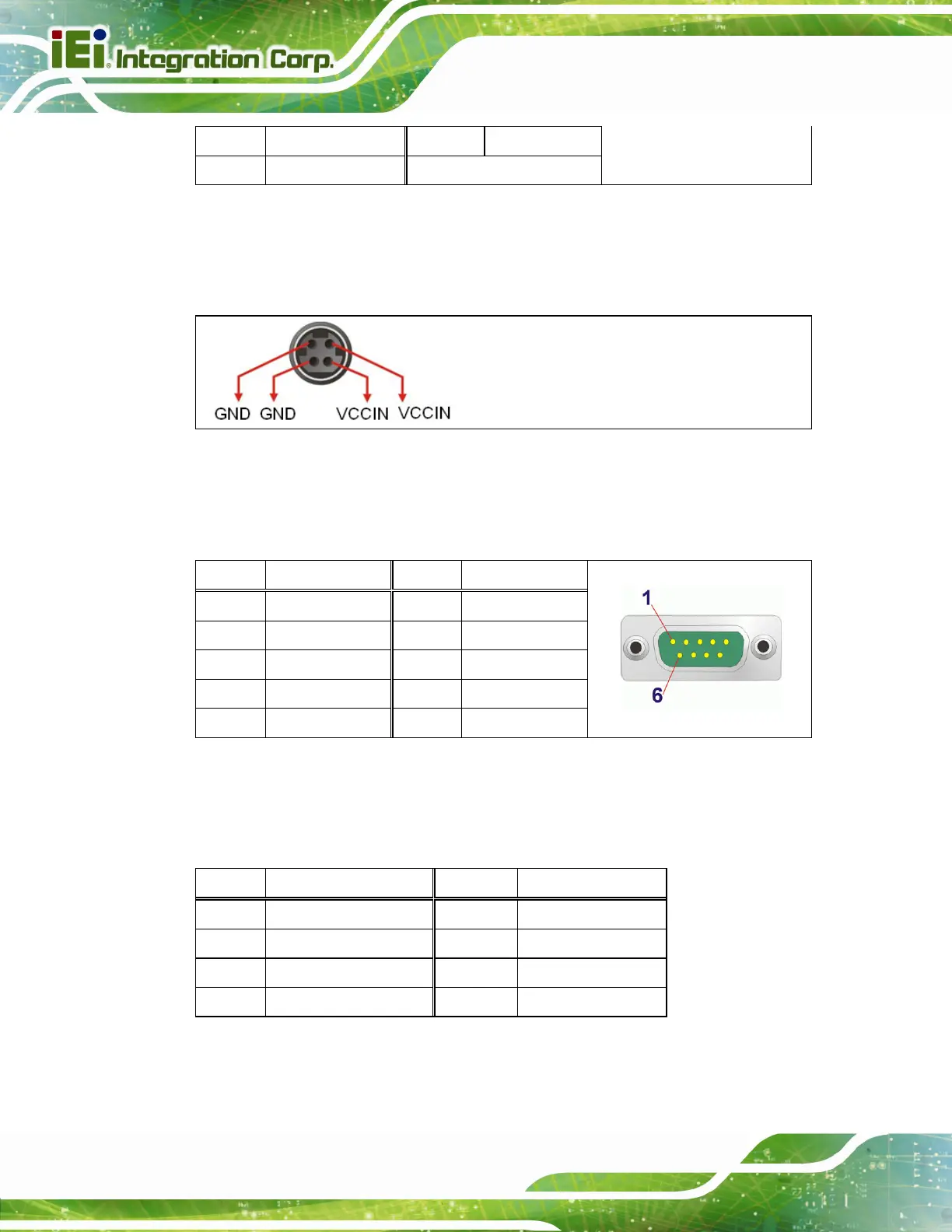

Page 122

9 HDMI_DATA0#- 19 HDMI_HPD

10 HDMI_CLK+

Table 7-24: HDMI Connector (HDMI1) Pinouts

7.3.3 Power Connector (PWR1)

Table 7-25: Power Connector (PWR1) Pinouts

7.3.4 RS-232/422/485 DB-9 Serial Port (COM1)

PIN NO. DESCRIPTION PIN NO.

DESCRIPTION

1 NDCD1 6 NDSR1

2 NSIN1 7 NRTS1

3 NSOUT1 8 NCTS1

4 NDTR1 9 XRI1

5 GND

Table 7-26: RS-232/422/485 DB-9 Serial Port (COM1) Pinouts

7.3.5 USB 2.0 Connectors (USB20_CN1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 +5A 2 GND

3 D8F- 4 D9F+

5 D8F+ 6 D9F-

7 GND 8 +5A

Table 7-27: USB 2.0 Connector (USB20_CN1) Pinouts
