POC-W24C-UL
T3 FHD Medical Panel PC
Page 4
1.4 Front Panel

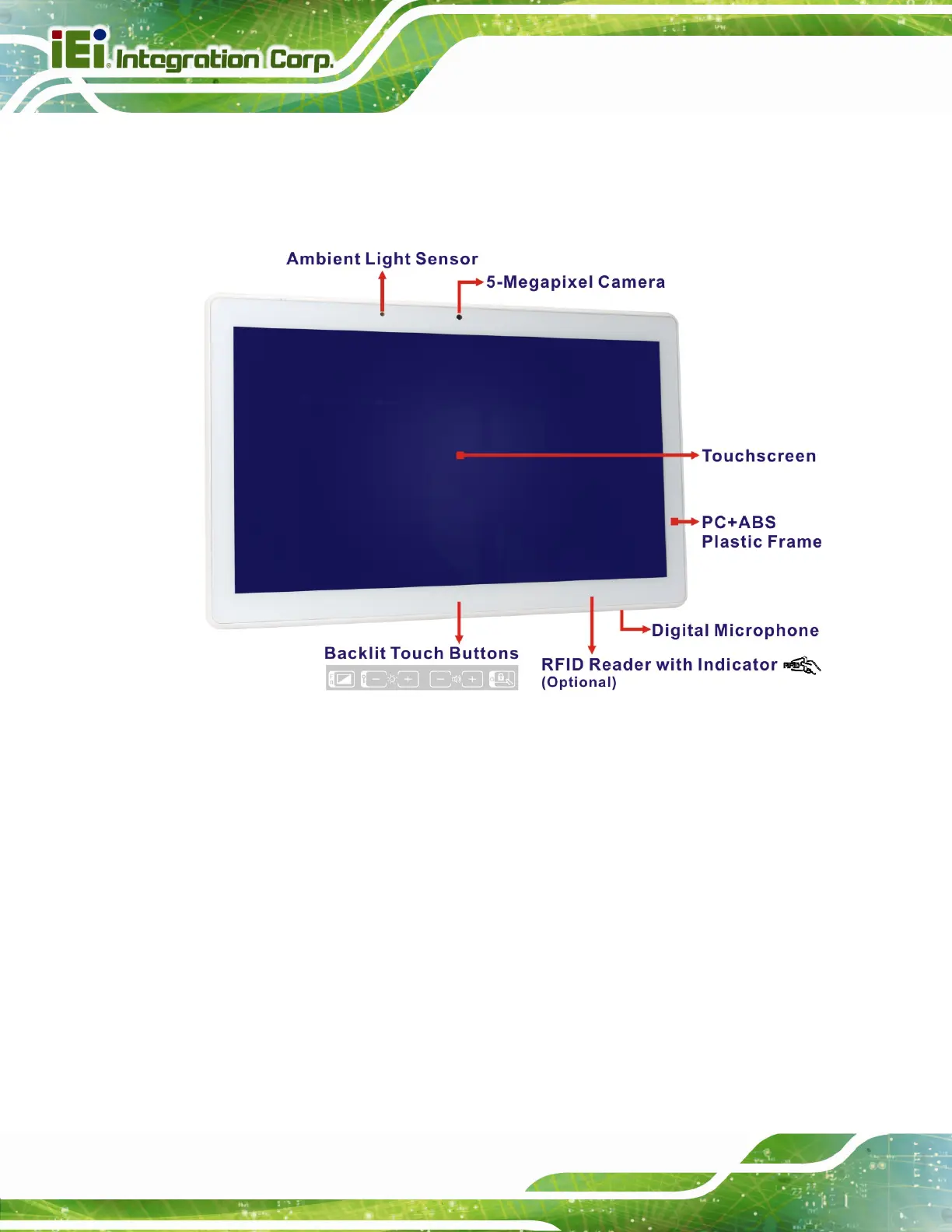

The front side of the POC-W24C-ULT3 is
a flat-bezel panel with a TFT LCD scre
en
surrounded by a PC+ABS plastic frame (
Figure 1-2
).
Figure 1-2: Front View
18
20
