Infinity Chimp 100 - Saving the Showfile

To Next Page

To Previous Page

Infinity Chimp Series

Loading a Show

Within the touchscreen display, simply select the show you would like to open from the drop-down menu.

After you selected the desired show to load, hit the Open button.

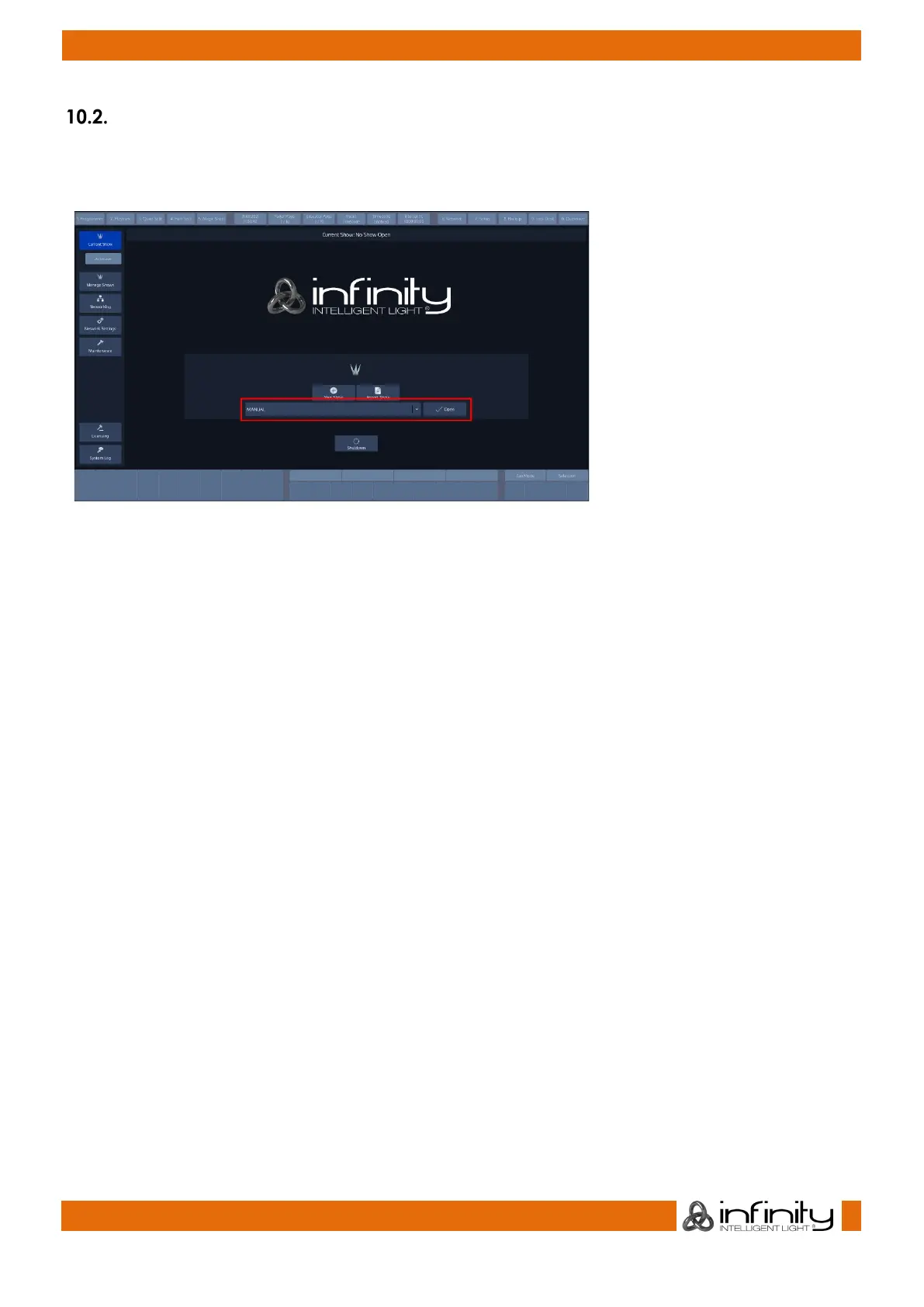

Fig. 38: Welcome Screen - Loading a Show
