Infinity Chimp Series

Enable Button LED Backlight

To enable or disable the Backlighting of Keys found on the faceplate, head over to the Show Settings

screen and Enable or Disable the Backlight.

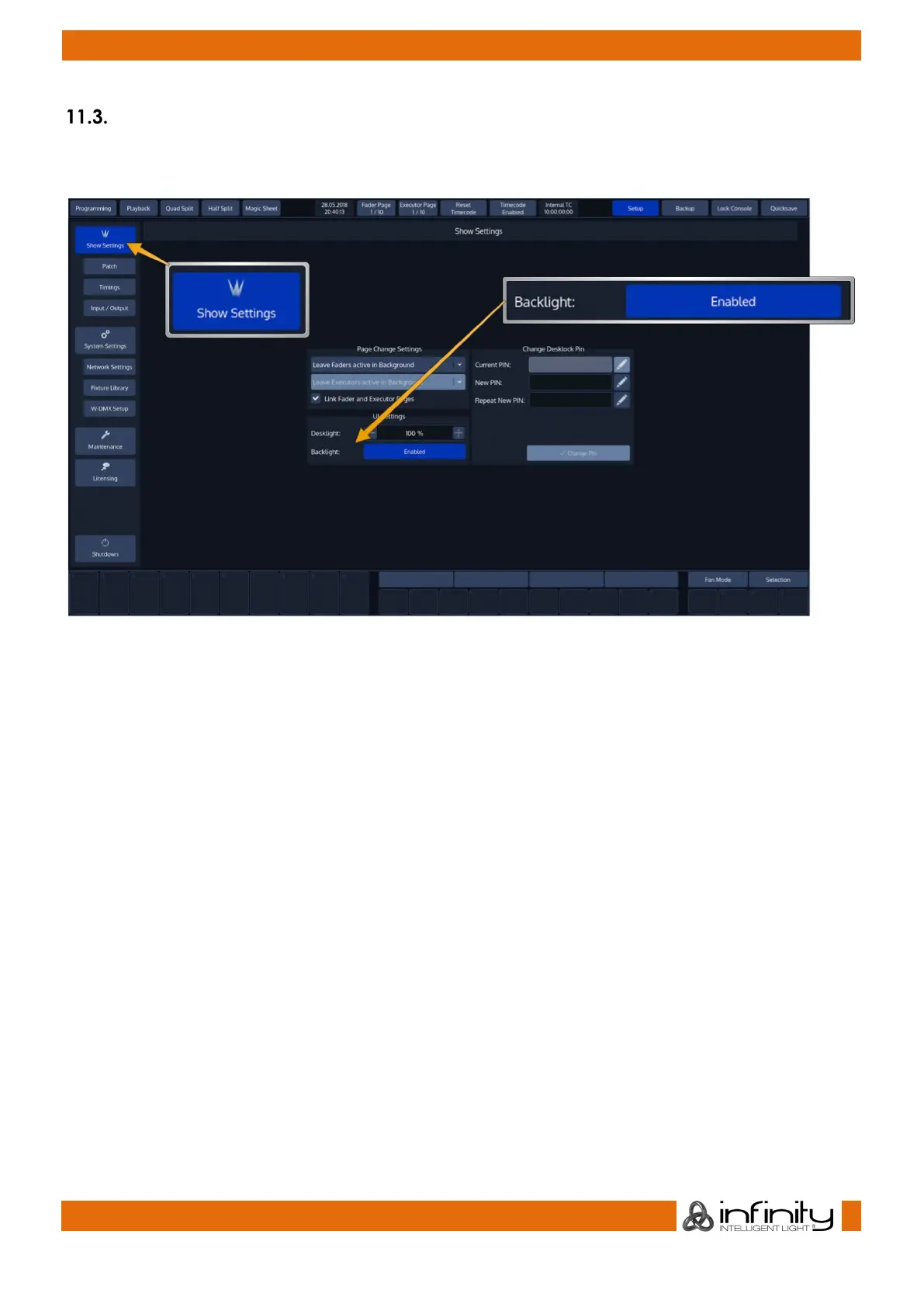

Fig. 48: Show Settings - Enable Button Backlight
