Intel FALCON 8+ Flight Manual

DESCRIPTION
© 2017 Intel Corporation. All rights reserved. 103
REV 00
APR 2017

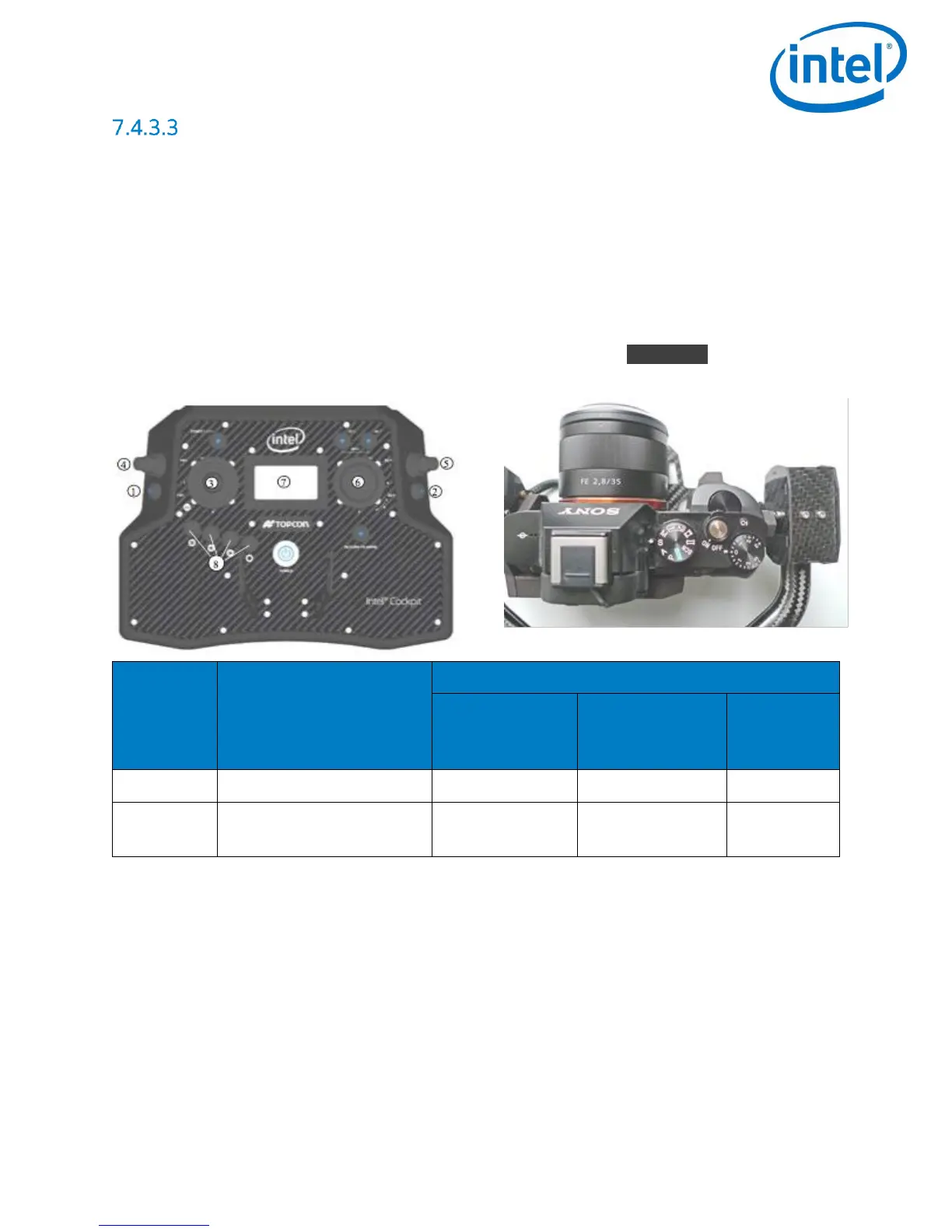

Sony Alpha 7R Full Frame Camera Control by the Intel
®
Cockpit GCS
The Sony Alpha 7R can be operated by using the functional elements of the Intel
®
Cockpit GCS.
Refer to Section 7.3.6 Camera Controls for specific button functions.
Additionally:
 Push Button #1 sets the mode for Rocker Switch, #5 functions.
 Rocker Switch #5 takes over the functions of the camera’s Dial 1 and Dial 2 functions.
o The default functions of Dial 1 and 2 depend on the selected shooting mode on
the camera. See table below:
B1
POSITION
FUNCTION
CAMERA SHOOTING MODE
S MODE
(SHUTTER
PRIORITY)
A MODE
(APERTURE
PRIORITY)
M MODE
(MANUAL)
1 (LED off)
Dial 1
Shutter Speed
Aperture
Aperture
2 (LED
on/red)
Dial 2
Exposure
Compensation
Exposure
Compensation
Shutter
Speed
 To access the camera options, navigate to ‘Camera Option’ on the Status Display:
INTEL COCKPIT

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
