Intel FALCON 8+

SERVICE / MAINTENANCE
© 2017 Intel Corporation. All rights reserved. 117
REV 00
APR 2017
Motor Rail Removal

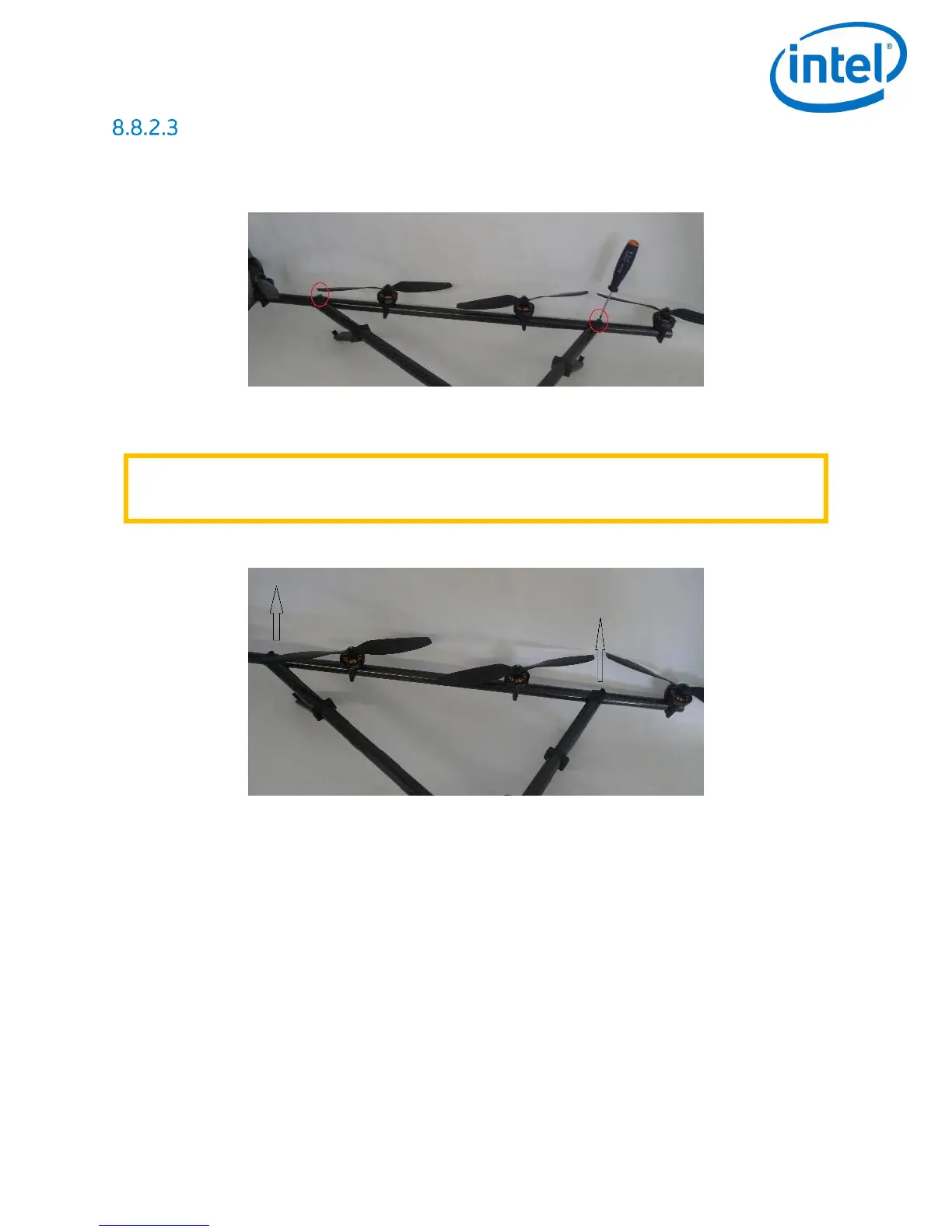

 Remove the two screws of the Motor Rail with a T6 Torx screwdriver.
 Remove the Motor Rail from the Center Cross by pushing the plugs of the Motor Rail up.
CAUTION: ROTATING THE MOTOR RAILS TOO MUCH CAN CAUSE THE CONNECTORS TO
BREAK
