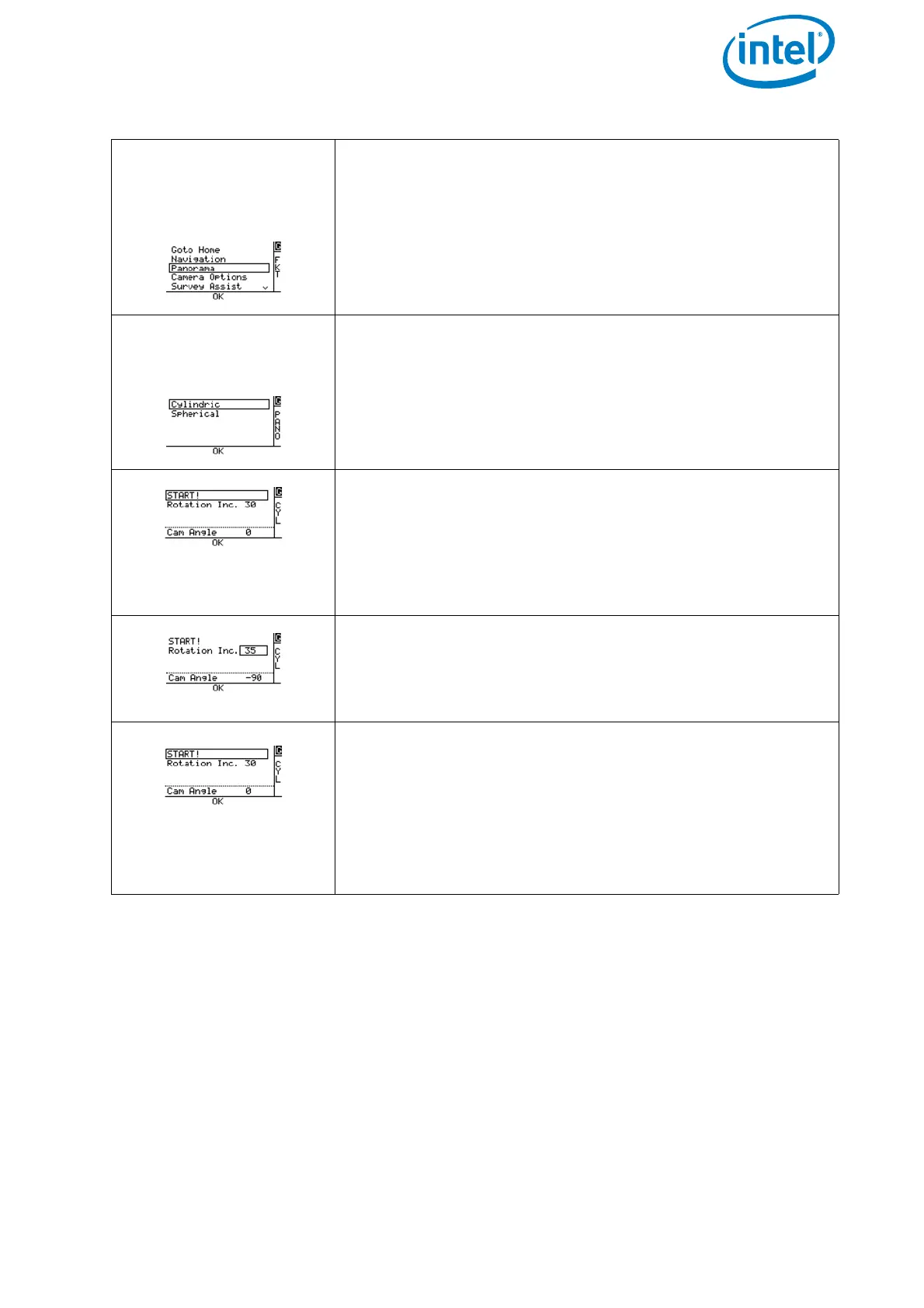

Push ENT on the Main
Screen of the Status
Display. The screen
below is opened:
Selecting Panorama
and pushing ENT opens
the following screen:
Selecting Cylindric and pushing ENT opens the next
screen.
By default, the Intel® Falcon™ 8+ UAV will take an image
every 30° while turning around the yaw axis. Meaning that
360°/30° = 12 images will be created. To adjust the rota-
tion angle, use the arrow LEFT button to activate
Rotation Inc. and confirm by pushing ENT. The field
behind Rotation Inc. is highlighted.
Use the arrow RIGHT/LEFT button to adjust the angle in
steps of 5° and confirm by pushing ENT.
The camera tilt angle is also displayed and can still be
adjusted by using the rocker switch R1 on the CTR.
Use the arrow LEFT button again to select START! and
confirm by pushing ENT.
The Intel® Falcon™ 8+ UAV makes a 360° turn around the
yaw axis and take all images with the settings determined
in the previous steps.
The panorama can be stopped anytime by the pilot by
giving a strong control stick command on the CTR.
Figure 5.2: Cylindrical Panorama (Continued)

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
