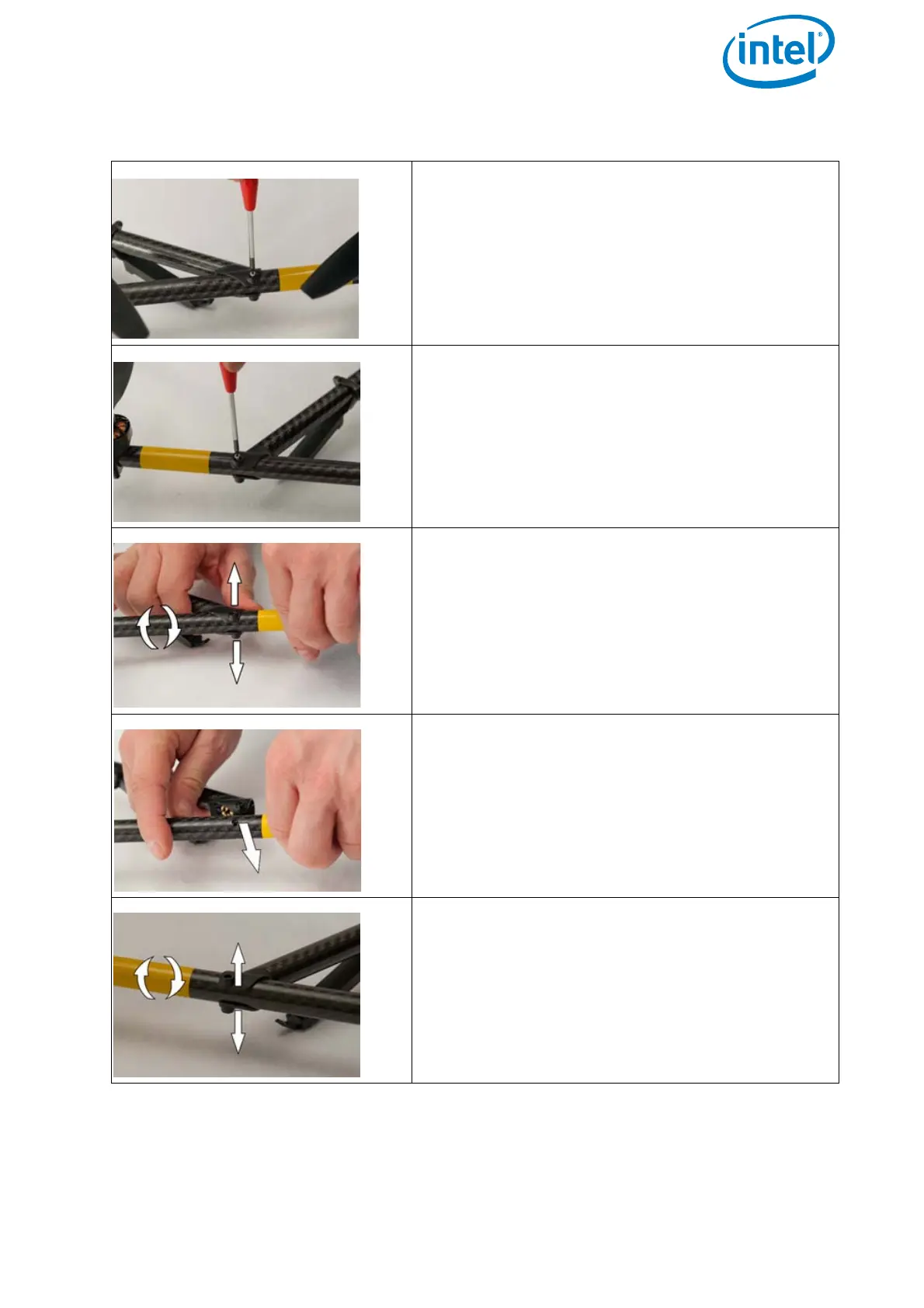

Figure 6.3: Removing a motor rail from an Intel Falcon F8+ UAV
1. Remove the screw M2x18 mm TX, FK of the
motor rail at the front end of the UAV.
Use a T6 torx screw driver.
2. Remove the screw M2x18 mm TX, FK of the
motor rail at the back end of the UAV.
Use a T6 torx screw driver.
3. Push the two ends of the connecting plug of
the front cross tube away from the motor rail.
Use only a slight force.
Rotate the motor rail by a small amount to
loosen the connector.
NOTICE: Possible breakage of the connector.
Do not rotate the motor rail too much.
4. Push the motor rail straight out of the
connecting plug of the front cross tube.
5. Push the two ends of the connecting plug of
the rear cross tube away from the motor rail.
Use only a slight force.
Rotate the motor rail by a small amount to
loosen the connector.
NOTICE: Possible breakage of the connector.
Do not rotate the motor rail too much.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
