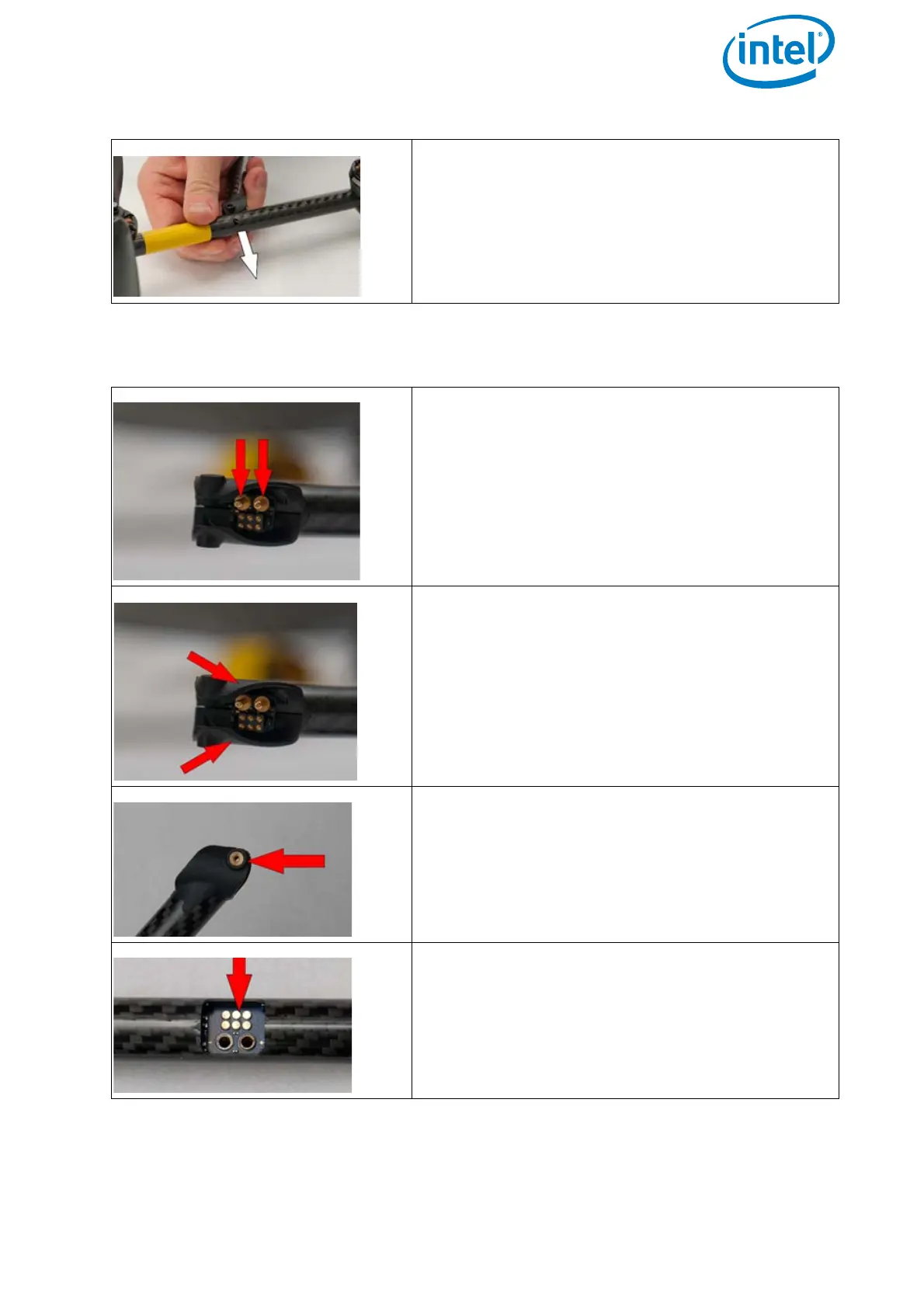

Before mounting a motor rail, perform the following checks:
6. Push the motor rail straight out of the
connecting plug of the rear cross tube.
Figure 6.4: Checks do be done before mounting a motor rail
1. On the Intel Falcon 8+ UAV, make sure the
golden pins of the cross tube connectors:
• show no wear
• are free of dirt
• are not bent.
2. Make sure the connecting plugs of the cross
tube are free of cracks and damages.
3. Make sure the thread bushings of the
connecting plugs of the cross tube are free of
damage.
4. On the replacement motor rail, make sure the
connectors of the motor speed controller:
• show no wear
• are free of cracks
• are free of dirt.
Figure 6.3: Removing a motor rail from an Intel Falcon F8+ UAV (continued)

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
