After these before described checks you can now mount the motor rail.
CAUTION:
CORRECT INSTALLATION OF A NEW MOTOR RAIL IS CRITICAL TO
OPERATING AND FLYING THE UAV SAFELY.
INCORRECT INSTALLATION OF A NEW MOTOR RAIL BY NOT
ATTACHING IT CORRECTLY TO THE CARBON CROSS AS SHOWN IN
THE BELOW PICTURES WILL CAUSE THE MOTOR RAIL TO BECOME
LOOSE IN FLIGHT DUE TO THE VIBRATION OF THE UAV AND WILL
CAUSE LACK OF CONTROL AND CRASHING, AS WELL AS POSSIBLE
INJURY TO PERSONS OR PROPERTY.

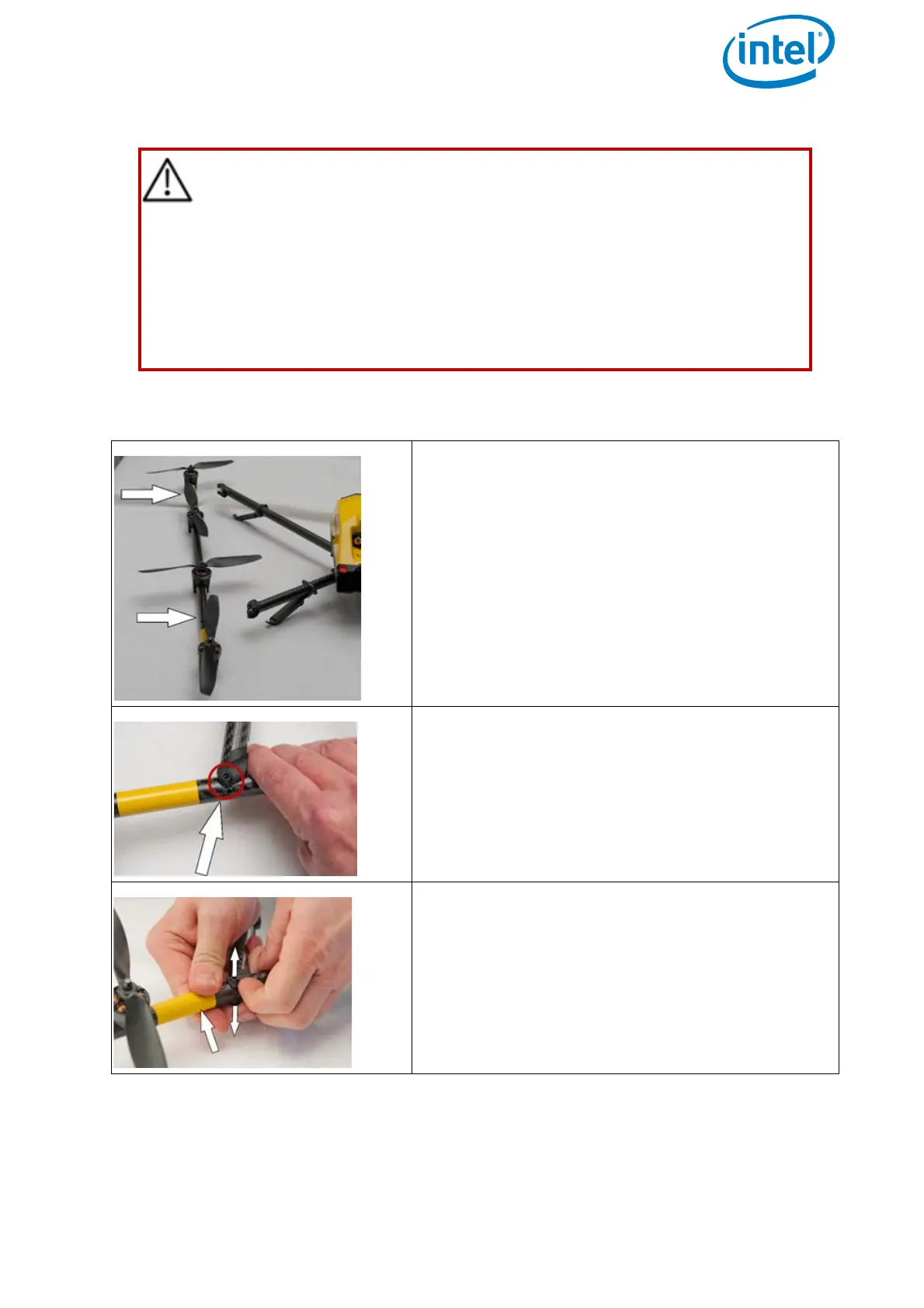

Figure 6.5: Mounting a motor rail onto an Intel Falcon F8+ UAV
1. Align the motor rail to the cross tubes. Make
sure there is no horizontal tilt of the motor
rail.
NOTICE: Risk of damage to the motor rail con-
nectors and the motor rail controllers if the
motor rail is attached with lateral offset.
Make sure there is no lateral offset between
motor rail and cross tube connectors.
2. Attach the motor rail to the rear cross tube.
Refer to the picture how to align the bore of the
connecting plug to the bore in the motor rail.
NOTICE: Always start with the rear cross tube.
3. Push the two ends of the connecting plug of
the rear cross tube away from each other.
Push the motor rail into the connecting plug
of the cross tube.
Use no force.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
