Intel FALCON 8+ User Manual

USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2018 Intel Corporation. All rights reserved 206

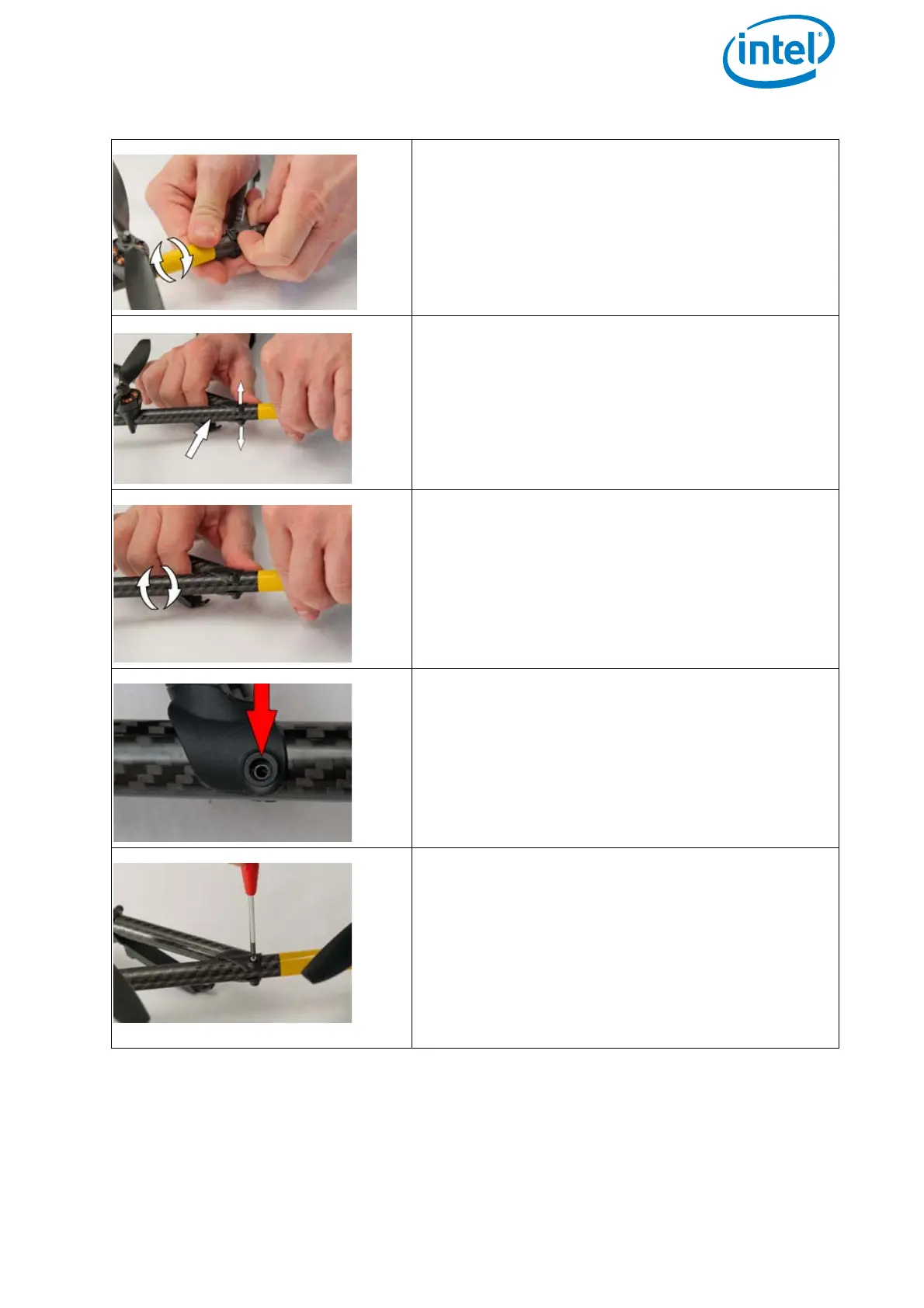

4. Rotate the motor rail by a small amount until
it fits.
NOTICE: Possible breakage of the connector.
Do not rotate the motor rail too much.
Make sure the pin of the center cross is inserted
in the jack of the motor rail.
If necessary retract the motor rail and start again.
5. Push the two ends of the connecting plug of
the front cross tube away from each other.
Push the motor rail into the connecting plug
of the cross tube.
Use no force.
6. Rotate the motor rail by a small amount until
it fits.
NOTICE: Possible breakage of the connector.
Do not rotate the motor rail too much.
Make sure the pin of the center cross is inserted
in the jack of the motor rail.
If necessary retract the motor rail and start again.
7. Make sure the bores of the front and rear
connecting plugs are correctly aligned to the
bores in the motor rail.
8. Apply thread locking agent Loctite 248 to the
2 screws M2x18 mm TX, FK.
9. Attach the screw M2x18 mm TX, FK on the
front cross tube.
Use a T6 torx screw driver.
Make sure the screw can be attached without
drag.
10.Tighten the screw.
Figure 6.5: Mounting a motor rail onto an Intel Falcon F8+ UAV (continued)

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
