2.5.5.3. Camera settings
The following section describes the most important functions of the camera when used
with the Intel Falcon 8+ UAV.

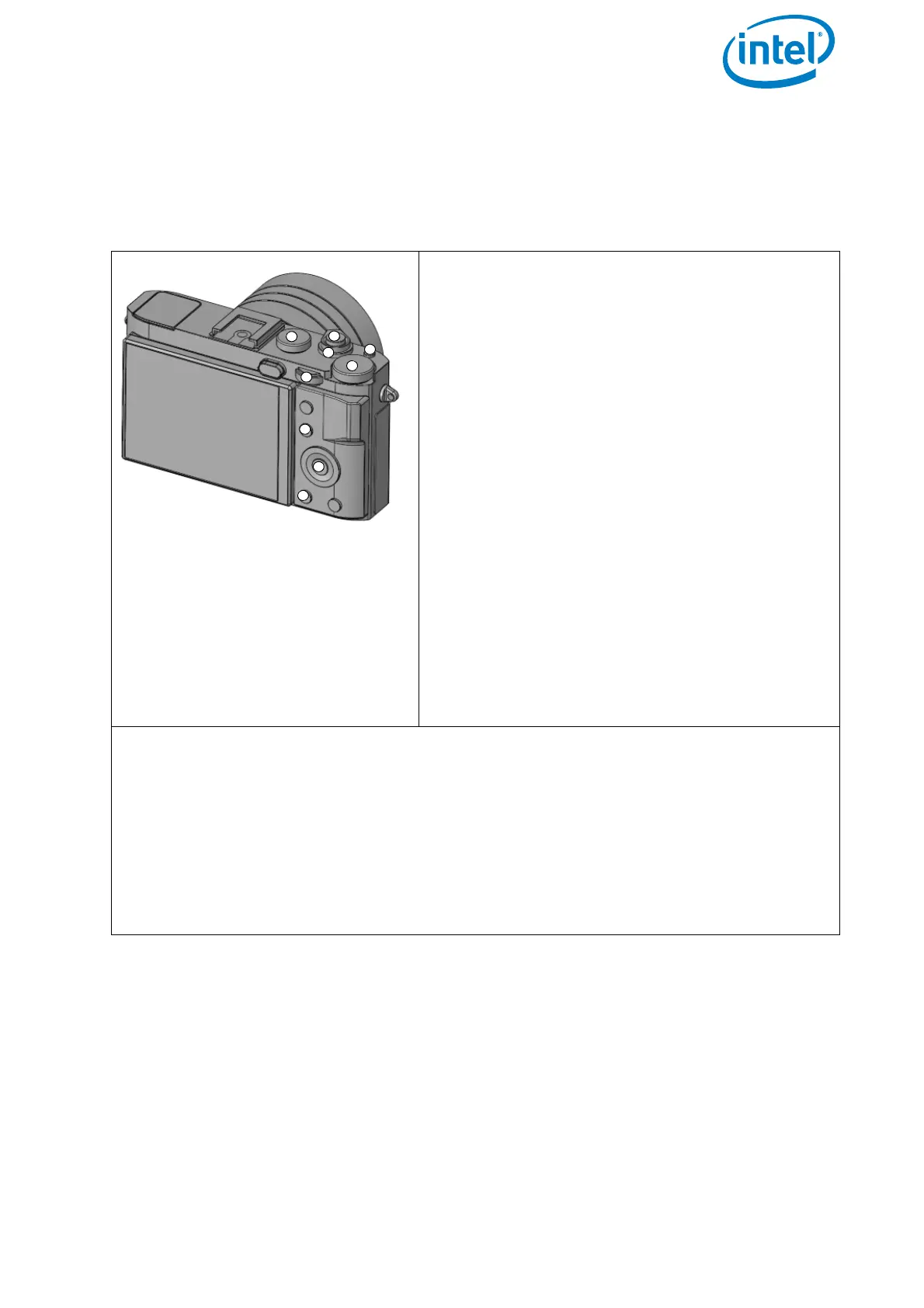

Figure 2.22: Camera settings for Sony RX1R II
The most important functions can be quickly
accessed via the buttons:
(1) Custom button (labeled C1 on the camera):
provides quick access to ISO value settings.
(2) Control dial
(3) Control Wheel: the wheel acts also as a 4-
way keypad. When the upper part of the
wheel is pressed, it circles through various
display modes.
(4) Power switch
(5) Exposure mode dial: P(rogram), A(perture),
S(hutter), M(anual)
(6) Fn button
(7) MENU button
(8) Exposure compensation dial
(9) Shutter button.
Capabilities such as aperture, shutter speed etc.
can be quickly accessed by turning the control
wheel (2) in the back of the camera (function of
this wheel depends on the operating mode
used).
After pushing the Fn button (number (6) above) by default the following parameters
can be accessed:
Top row: Drive Mode / Flash Mode / Flash Comp. / Focus Area / Exposure Comp. /
ISO
Bottom row: Metering Mode / White Balance / DRO / Auto HDR / Creative Style / LPF
effect / Shoot mode
The camera menu can be accessed by pushing the MENU button (number (7) above).
On the first page of the menu, the important parameters such as Image Size and
Quality can be set. Please refer to the camera manual for further details.
1
2
3
4
6
5
7
8
9

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
