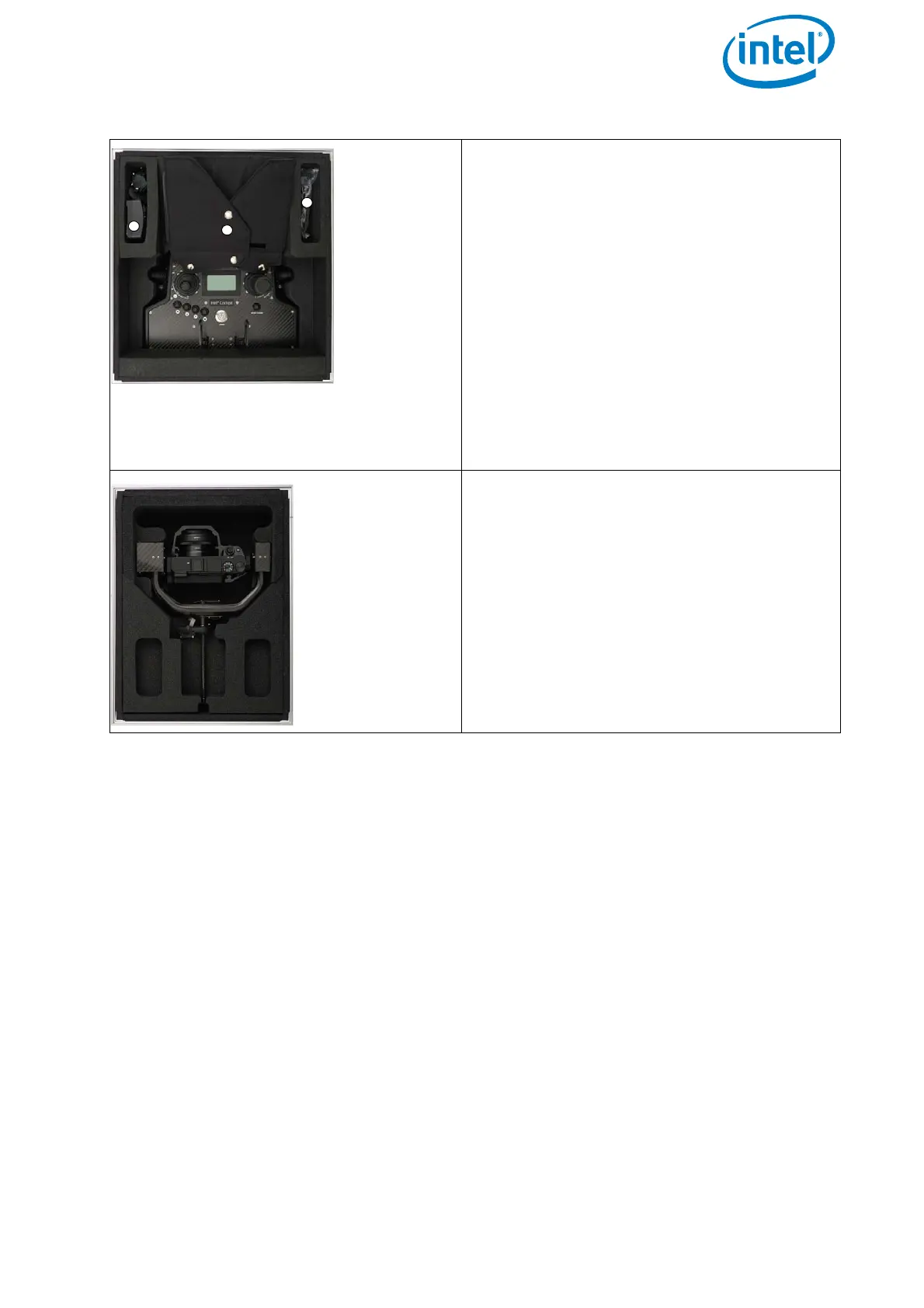

Intel® Cockpit Controller (CTR) Case
This case contains:
CTR with mounted sun shield
(1) When transporting the CTR in the case,
the sunshield must be arranged like
shown to provide extra protection of
the touchscreen tablet against
scratches during transportation.
(2) Additional space
(3) Additional space e.g. for an extra power
supply
Included in the case but not shown:
Shoulder harness is underneath the sun
shield protected touchscreen tablet.
Payload Case
The payload of the Intel® Falcon™ 8+ UAS
must be placed as shown on this image.
Make sure that it is placed conveniently
inside of the foam bolster. The foam bol-
ster cover (not shown) on top of the pay-
load should be used to secure the payload
when it is transported mounted on the
UAV in the Intel® Falcon™ 8+ UAV case.
Figure 2.37: Packing Instructions for the Intel® Falcon™ 8+ UAS Cases (continued)
1
2
3

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
