Intel FALCON 8+ User Manual

USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2018 Intel Corporation. All rights reserved 84
Intel® Backpack
The backpack is the optimal solution to
transport the complete UAS over rough
terrain or on longer walks.

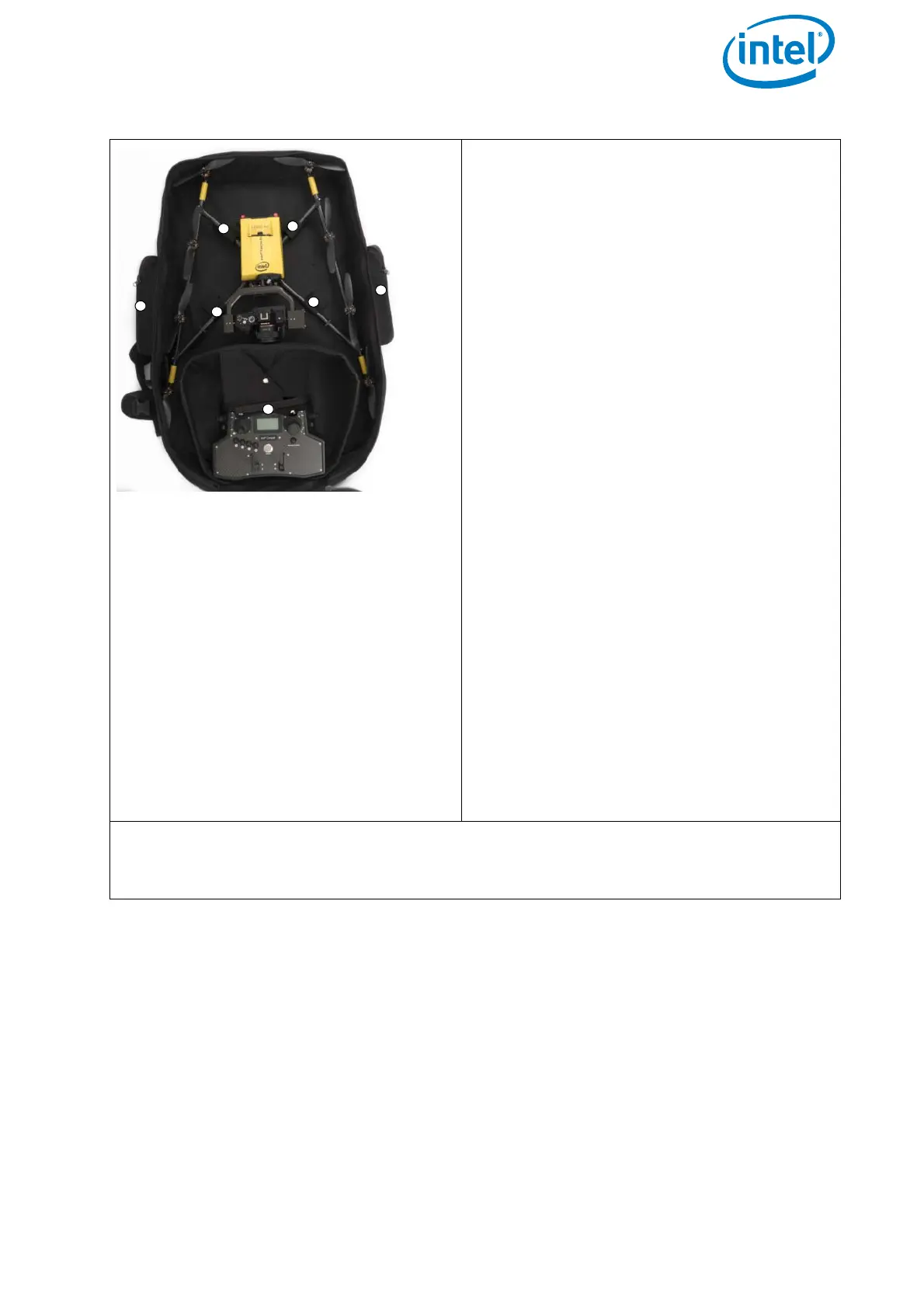

When placing the UAV into the backpack
always align the bottom two propellers (in
the image on the top, with the Intel® Fal-
con™ 8+ UAV facing down) parallel to the
top of the backpack like shown in the
image. The other propellers are oriented
parallel to the motor rails.
(1) Use the four big Velcro tapes to secure
the Intel® Falcon™ 8+ UAV inside the
backpack. They should be very tight so
that they “lift” the system up, and away
from the CTR.
(2) At the bottom part, there is space for
the CTR. Before placing it inside of the
backpack make sure that the sun shield
is arranged as shown in the image to
protect the touchscreen tablet and that
you secure it with the Velcro tape.
(3) On the outside, there are two separate
pockets for the Intel® Powerpack
batteries.
Another large pocket is located on the lid
(not shown in the image). There is enough
space for items such as another Intel®
Powerpack battery, the power supply unit
or a notebook and the shoulder harness.
The images of the items above are just for illustration purpose and the actual item(s)
packed with your Intel® Falcon™ 8+ UAS may differ from the one(s) depicted here
depending on, for example, which payload you ordered.
Figure 2.37: Packing Instructions for the Intel® Falcon™ 8+ UAS Cases (continued)
1
2
3
1
1
1
3

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
