Server Chassis Features
Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide 5
Internal Components

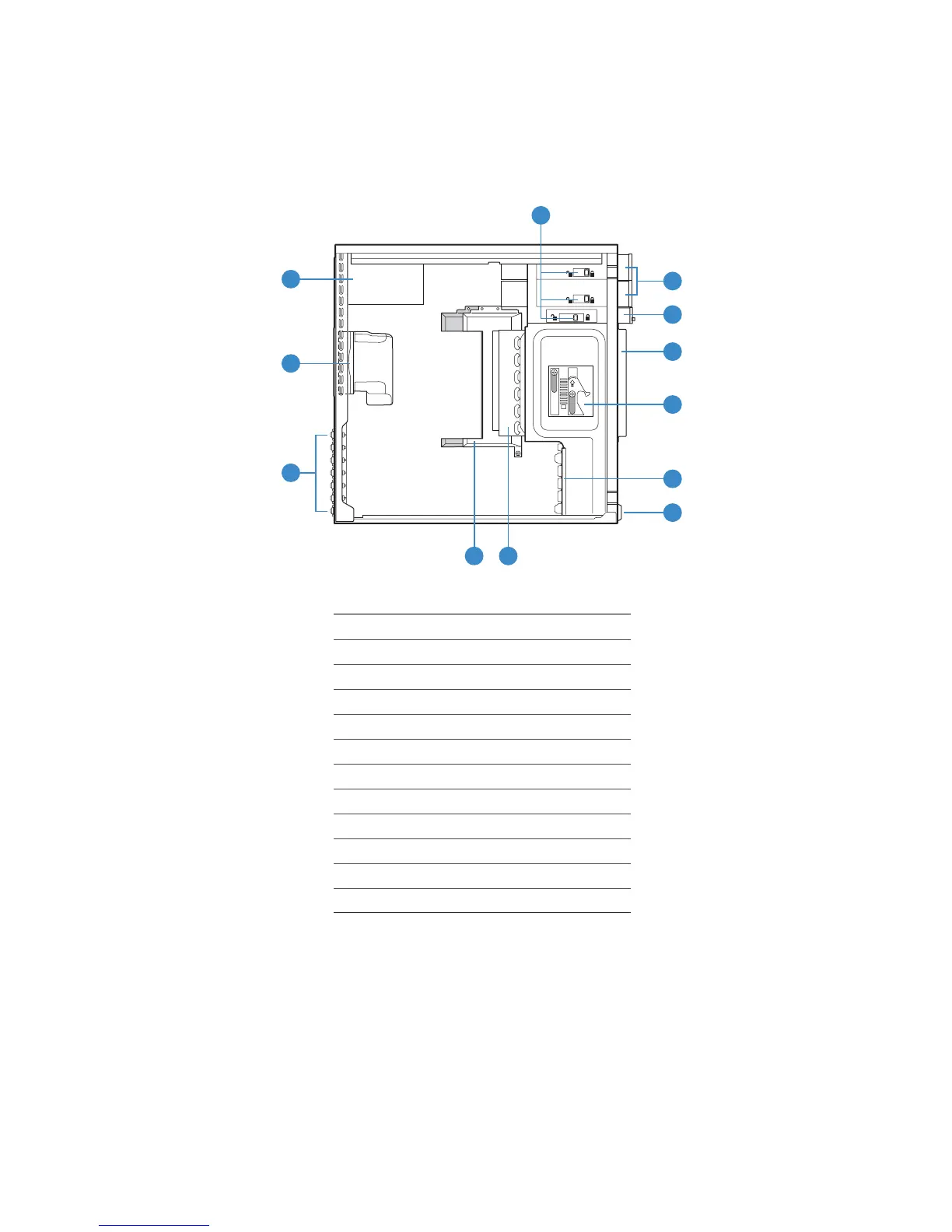

Figure 4. Internal Components
A. Tool-less Device Bay Locks
B. 5.25-in Device Bays
C. 3.5-in Device Bay
D. Drive Bay EMI Shield
E. Drive Cage Retention Mechanism
F. PCI Add-in Card Guide
G. Front Panel USB Ports
H. Fixed Hard Drive Cage
I. Large Processor Air Duct
J. Rear Tool-less PCI Retention Mechanisms
K. Fan Duct / System Fan Assembly
L. Power Supply
TP02033
C
D
E
F
G
B
L
J
K
A
I H
