Hardware Installations and Upgrades
48 Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide
Replacing a Hot Swap Power Supply (BRP configuration
only)
Warning: Hazardous conditions, power supply: Hazardous voltage, current, and energy levels are
present inside the power supply. There are no user-serviceable parts inside it; servicing of
the power supply should be done only by technically qualified personnel.
1. Observe the safety and ESD precautions listed in Appendix A, “Safety Information”.
2. Remove power cable from defective power supply.
3. Press up on green latch (see letter “A” in the following figure) while pulling on handle
(see letter “B”) to remove hot swap power supply from chassis.

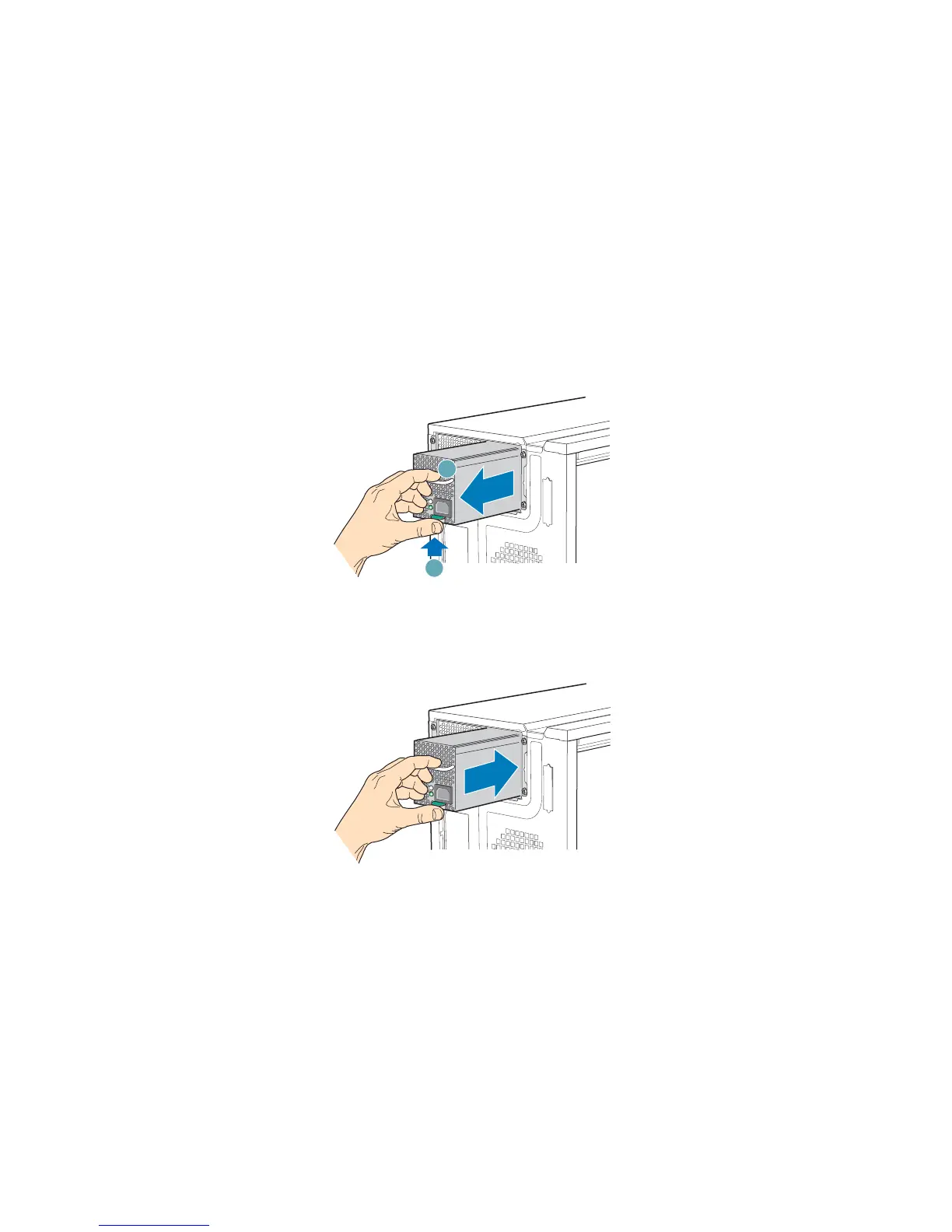

Figure 60. Removing Hot Swap Power Supply Module from Chassis
4. Insert new hot swap power supply module.
Figure 61. Inserting Hot Swap Power Supply Module in Chassis
5. Connect power cable to replaced hot swap power supply.
TP00856
A
B
TP00854
