Hot Swap Drive Cage Upgrade Install Instructions (optional)
Intel® Entry Server Chassis SC5299-E DP/WS/BRP User Guide 73
Note: For proper airflow, the drive carrier must be replaced in the chassis, even if no hard drive
is installed in it.

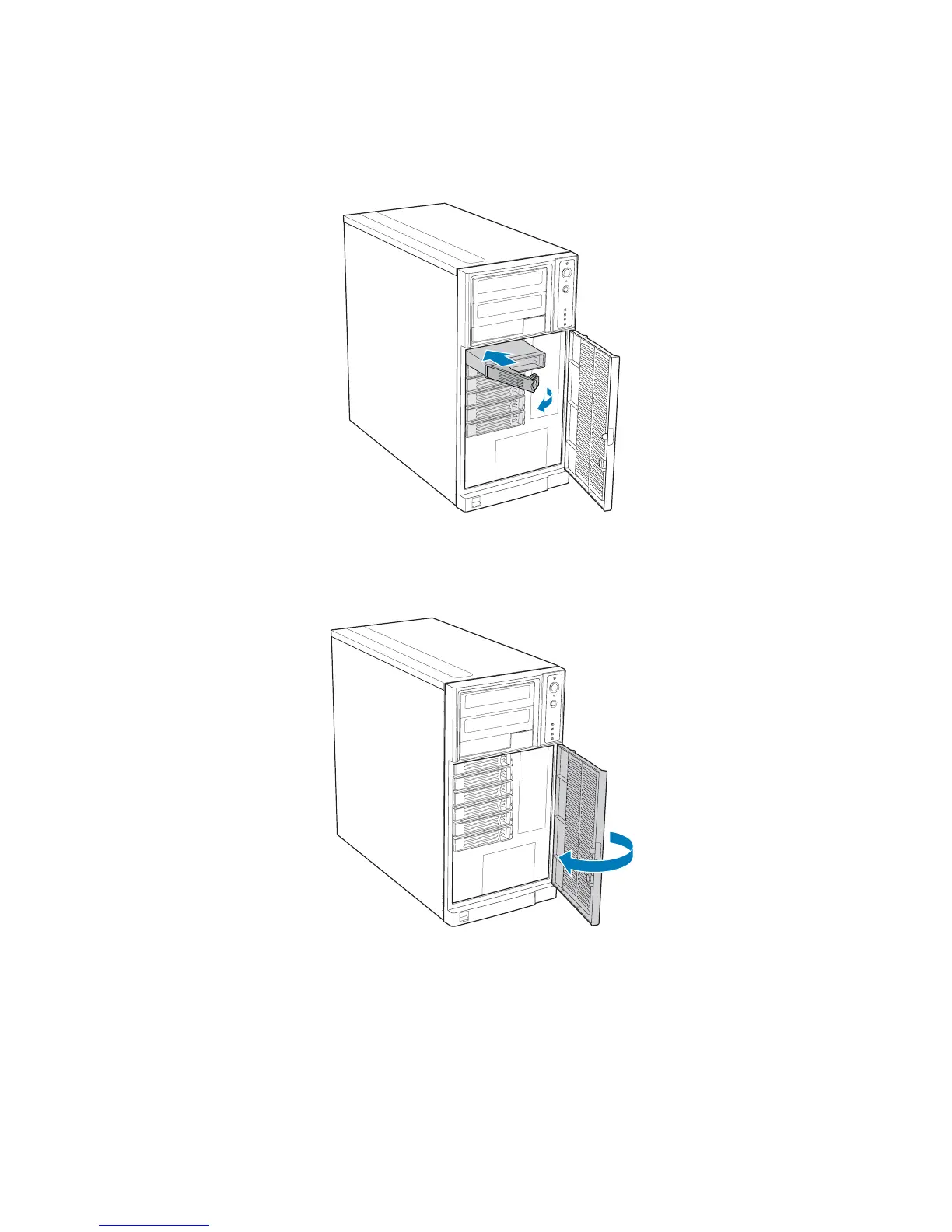

Figure 95. Re-installing Drive Carrier in Hot Swap Drive Cage
6. Close the drive bay access door.
Figure 96. Closing Drive Bay Access Door
AF000313
AF000314
